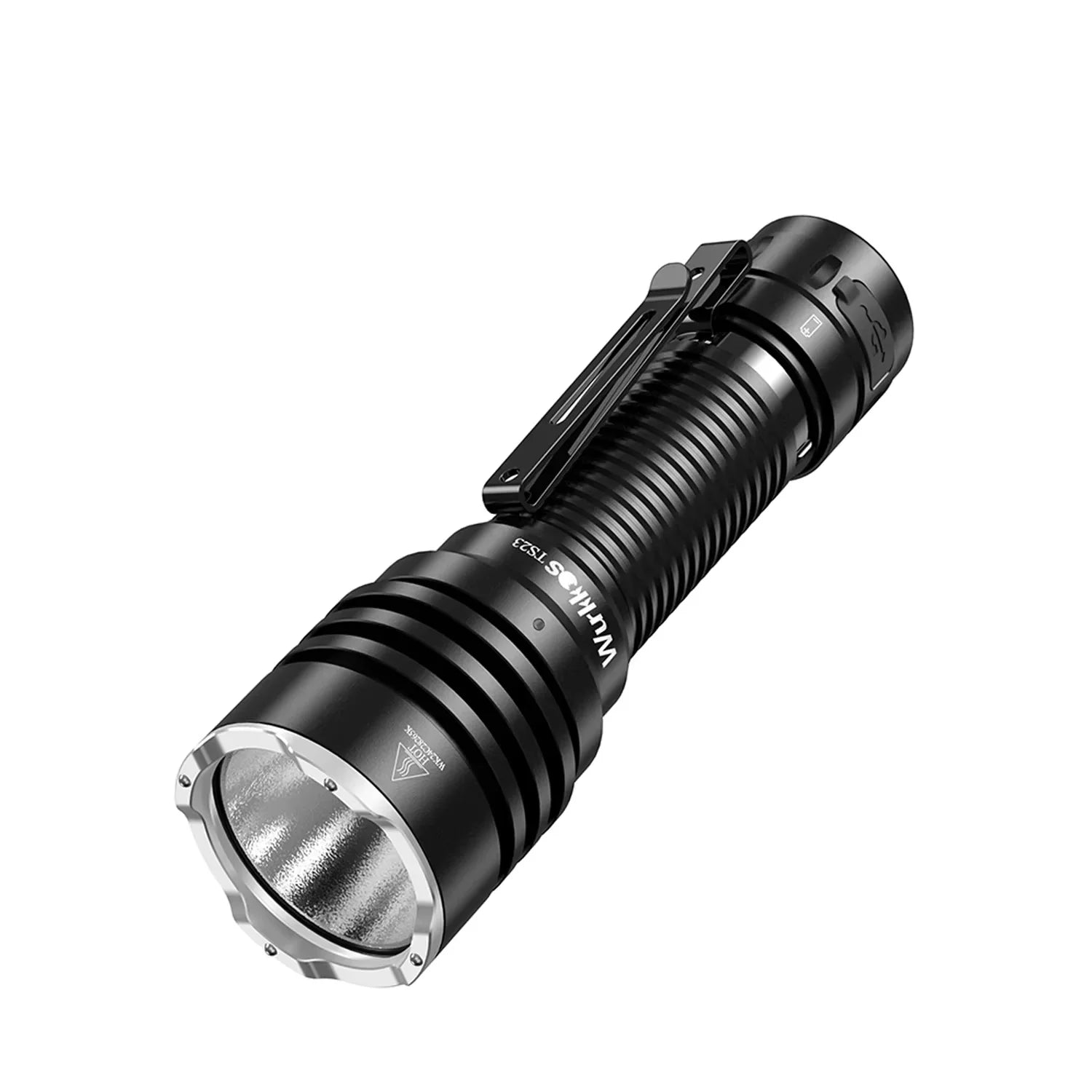

Wurkkos TS23

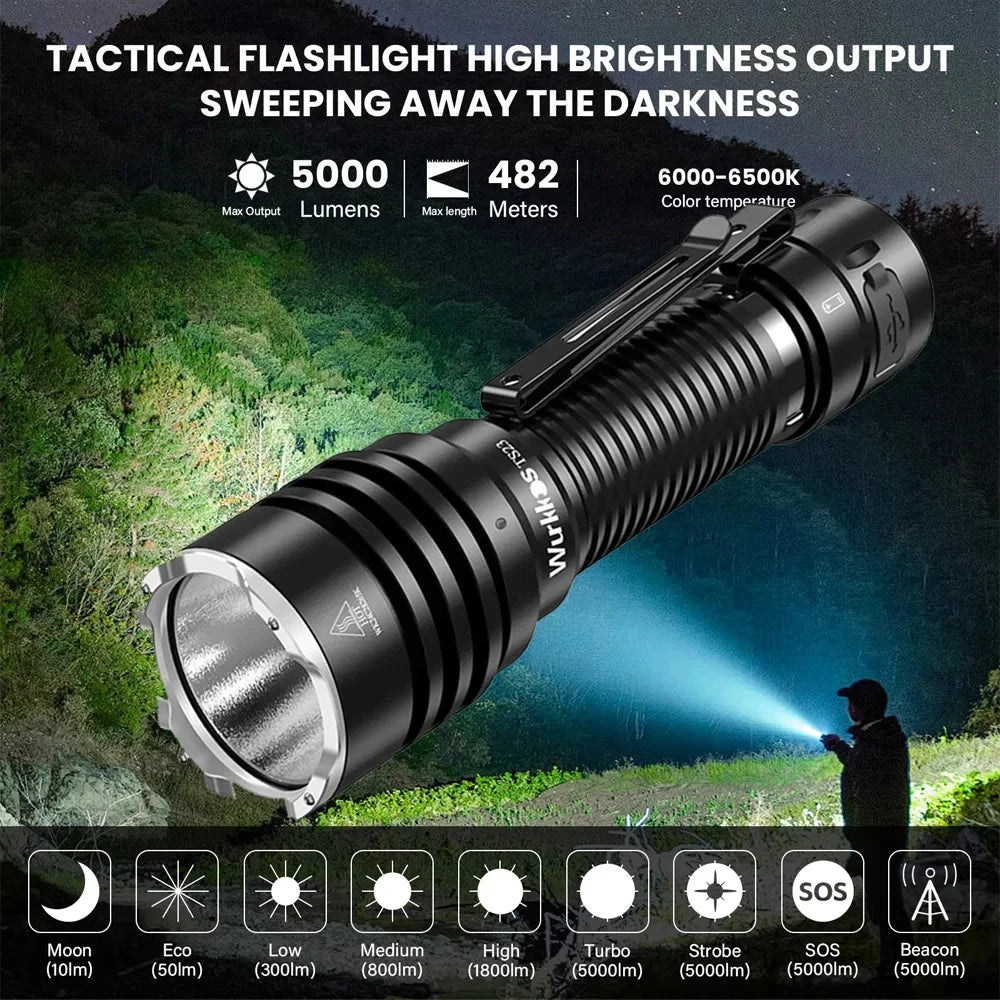

Wurkkos TS23 is a high lumen led flashlight with electric tail switch design, max 5000 Lumen regulated output, beam distance up to 482 meters.

Specifications

☀Led: XHP70.3 HI 6000-6500K
☀Operating voltage: 3.0V-4.2V
☀Beam Angle: Narrow beam 15°; Flood beam 73°
☀Battery options: 1x 21700 Li-ion Battery
☀Dimension: 138mm (length) x 41mm (head diameter)
☀Weight: 173g / 0.38lb(excluded battery)
☀Reflector: Orange Reflector
☀Circuit Type: Boost Driver
☀Flashlight body: Aerospace grade 6061 grade aluminum alloy, CNC manufactured to hard-anodized to military grade specification type III, anti-abrasive finish to get solid built body, anti-crash geometry and better heat exchange.

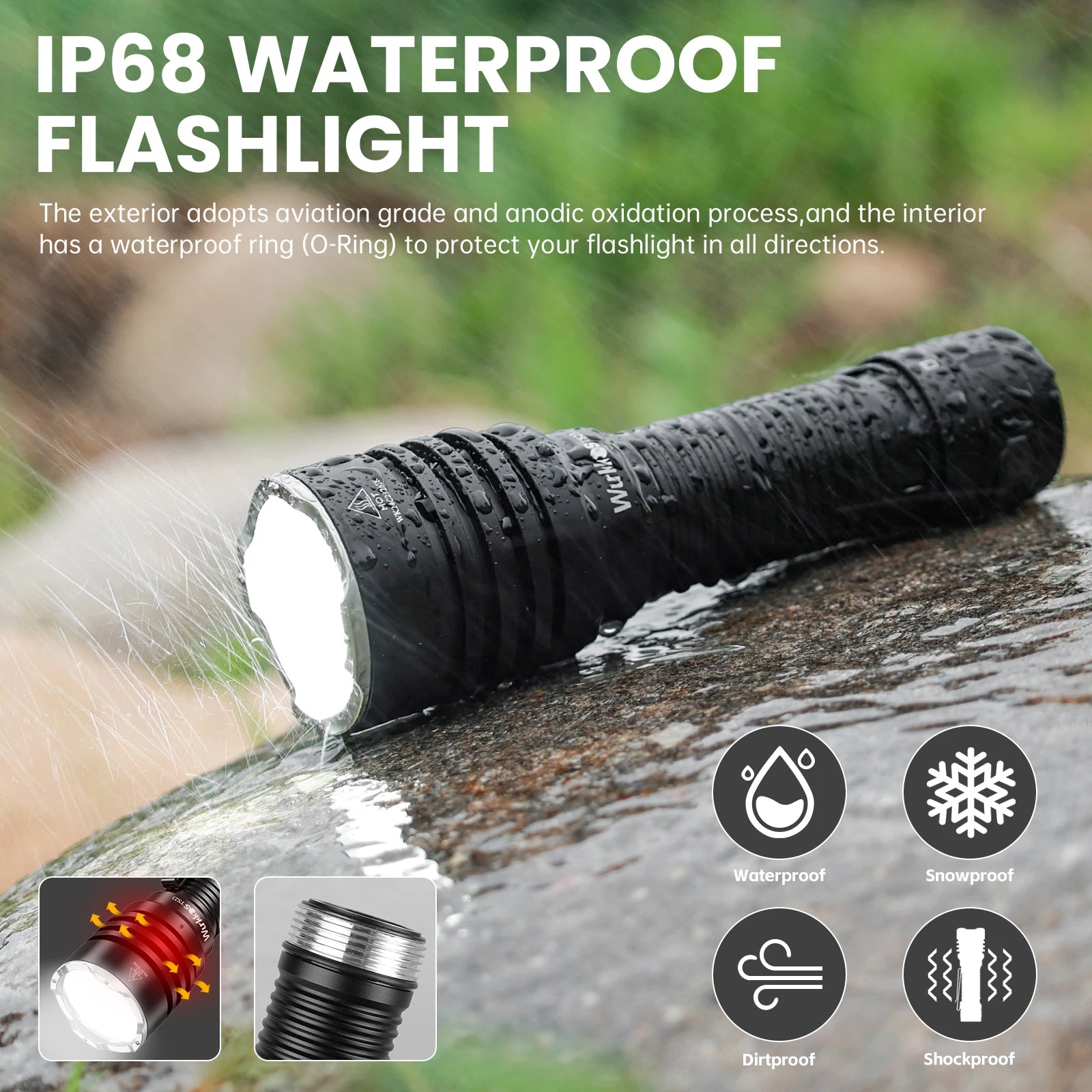

☀Water resistance i.a.w. IP68
☀Reverse polarity protection to protect against improper battery installation.
☀Advanced Temperature Regulation (ATR) technology: ATR automatically reduces the brightness level when the driver temperature reaches 60°C to prevent overheating
☀Low voltage warning

Operation Instructions

The TS23 led flashlight with two group mode(Stepped&Tactical), control by one electric tail switch, easy to use by one hand.

Power Indicator

The LED indicator in the side switch shows the power status for 5 seconds after turning TS23 on.
Green = battery power is 75%-100%
Yellow= battery power is 50%-75%
Red = battery power is 25%-50%
Flashing Red = critical power(<25%), will stay flashlight red when it is on.
Low Voltage Protection: If the battery’s voltage is lower than 2.8V, TS23 turns off automatically to avoid battery damage by over discharge.
