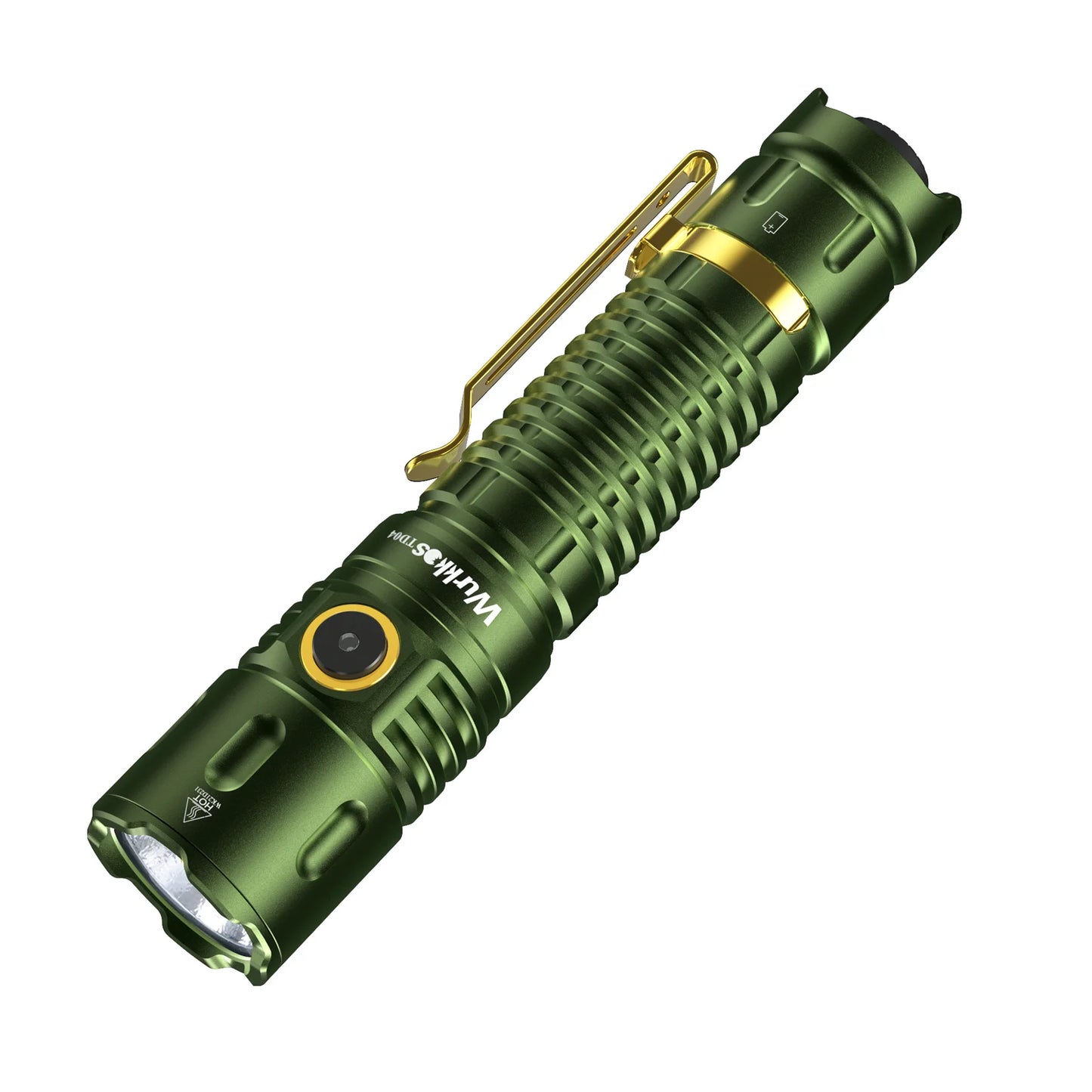

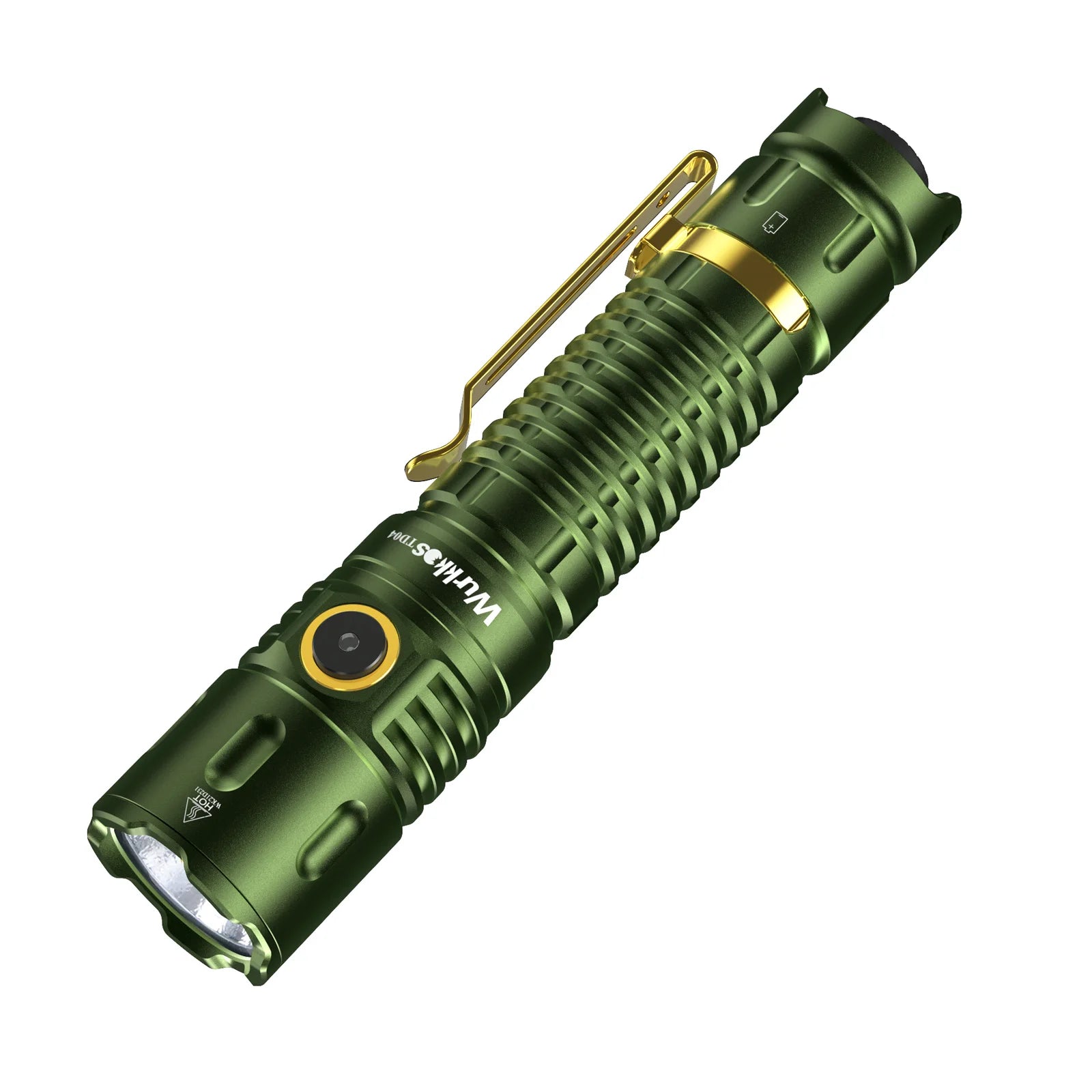

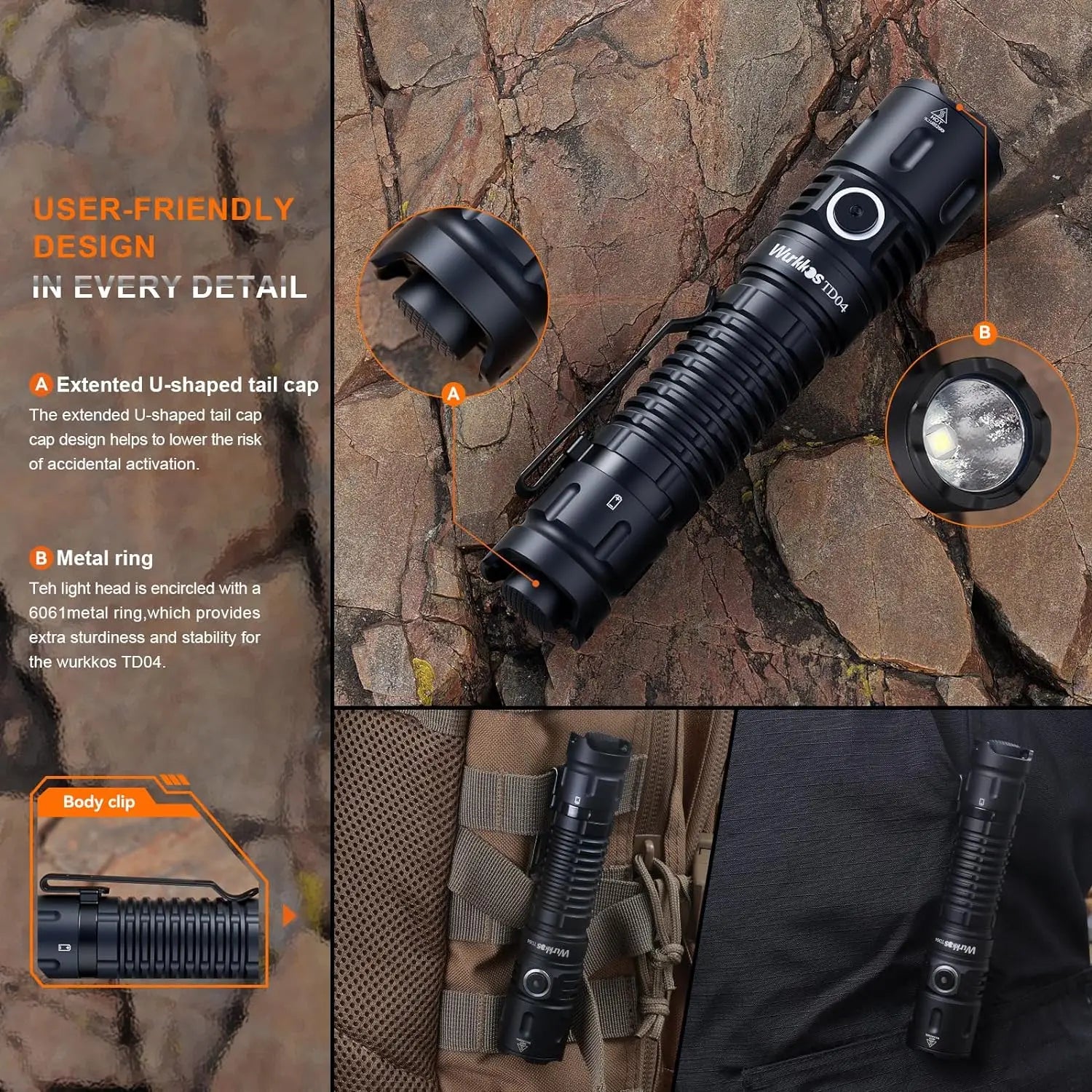

Wurkkos TD04

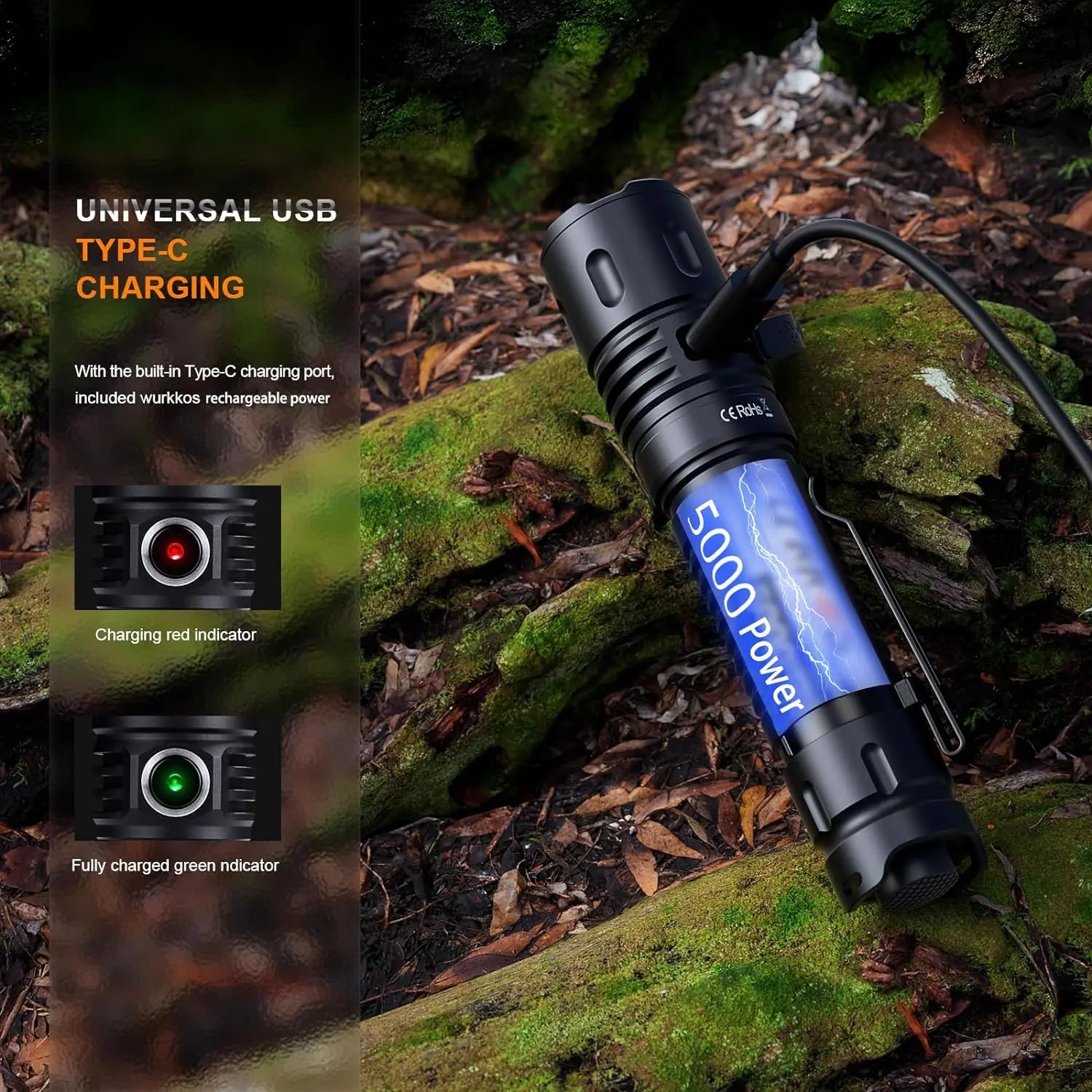

Wurkkos TD04 is a powerful, versatile tactical flashlight, designed for home, EDC or outdoor activities like camping, hiking, fishing or hunting. It is powered by a single 21700Li-ion rechargeable battery, is rechargeable via USB-C .The flashlight features two mode groups: Stepped mode and Tactical mode group. TD04 delivers a maximum output of 3000 lumens with a maximum range of 295 meters.

Specifications

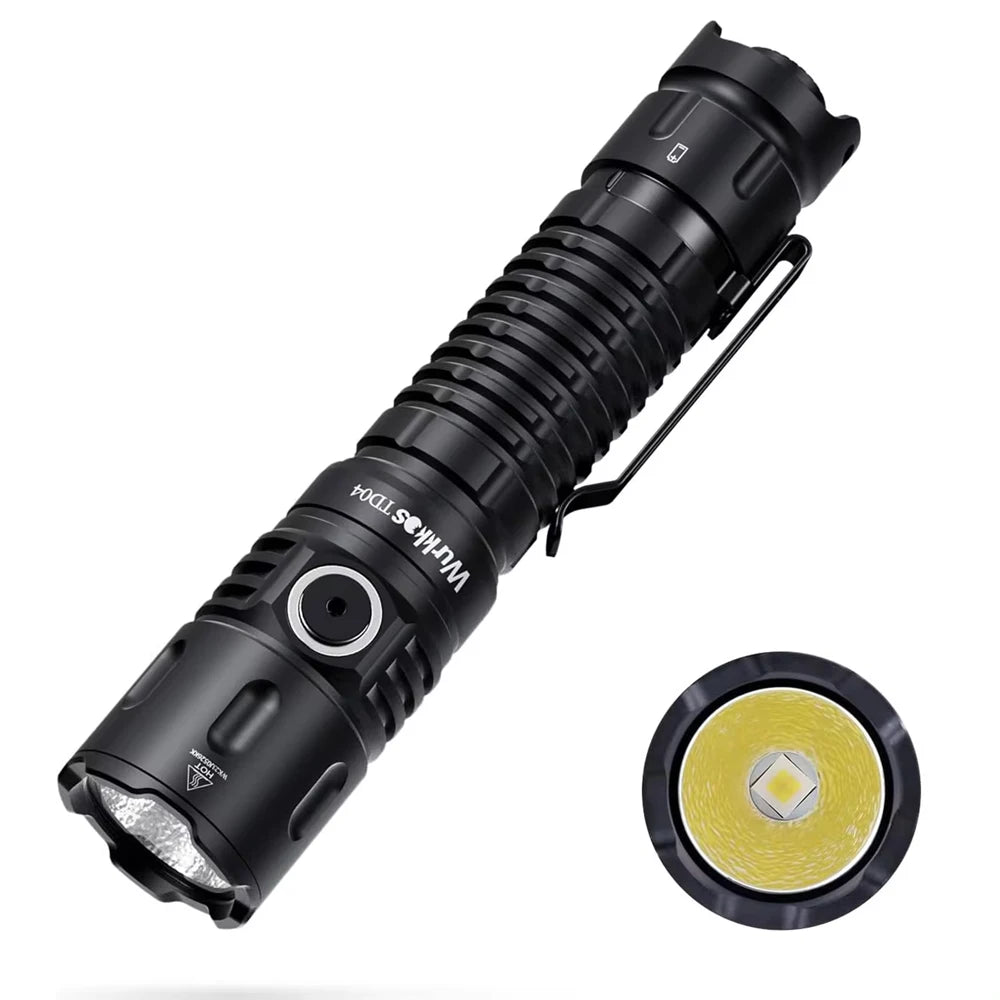

☀Emitter: 1x XHP50D HI 5700-6000K
☀Reflector: Smooth reflector
☀Operating voltage: 3V – 4.2V
☀Battery options: 1x 21700 Li-Ion battery
☀Dimension: 137mm (length) x 29.5mm (head diameter)
☀Weight: 80 ±1 gram (without battery)
☀Circuit Type: PWM circuit
☀Flashlight body: Aerospace grade 6061 grade aluminum alloy, CNC manufactured to hard-anodized to military grade specification type III, anti-abrasive finish to get solid built body, anti-crash geometry and better heat exchange.
☀Toughened mineral glass lens
☀Water resistance i.a.w. IP68
☀Mode Memory: memorizes the last brightness level used in the general modes
☀Reverse polarity protection to protect against improper battery installation.

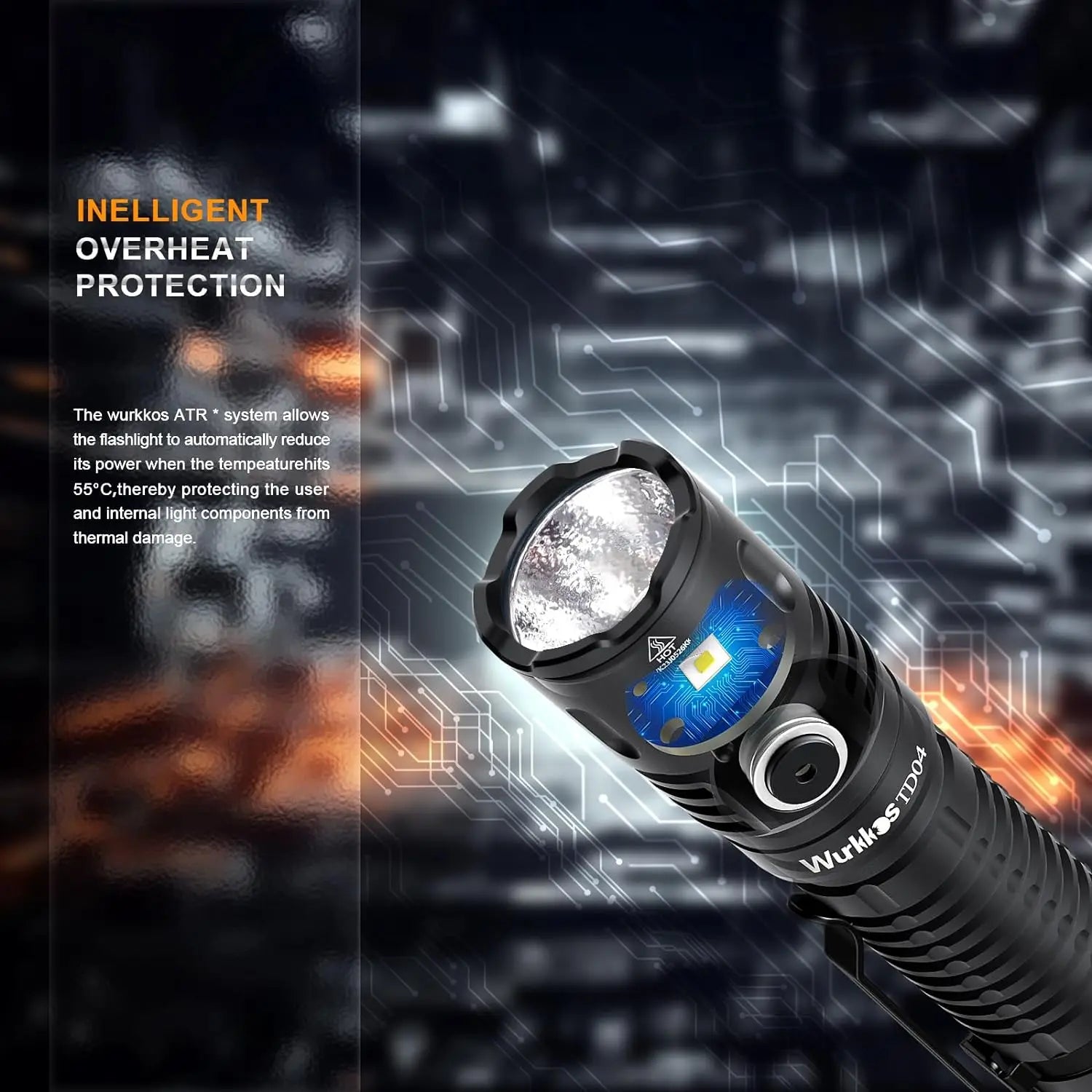

☀Advanced Temperature Regulation (ATR) technology: As the temperature rises, TD04 is programmed to automatically step down and step up the brightness to prevent over-heating.

Power Indicator

The LED indicator in the side switch shows the power status for 5 seconds after turning TD04 on.
Green = remaining battery level is about 75-100%.
Orange=remaining battery level is about 50%-75%
Red = remaining battery level is about 25%.
Flashing Red = critical power (less than 25%), replace or recharge battery as soon as possible.

Operation Instructions

Group1(Stepped Mode):

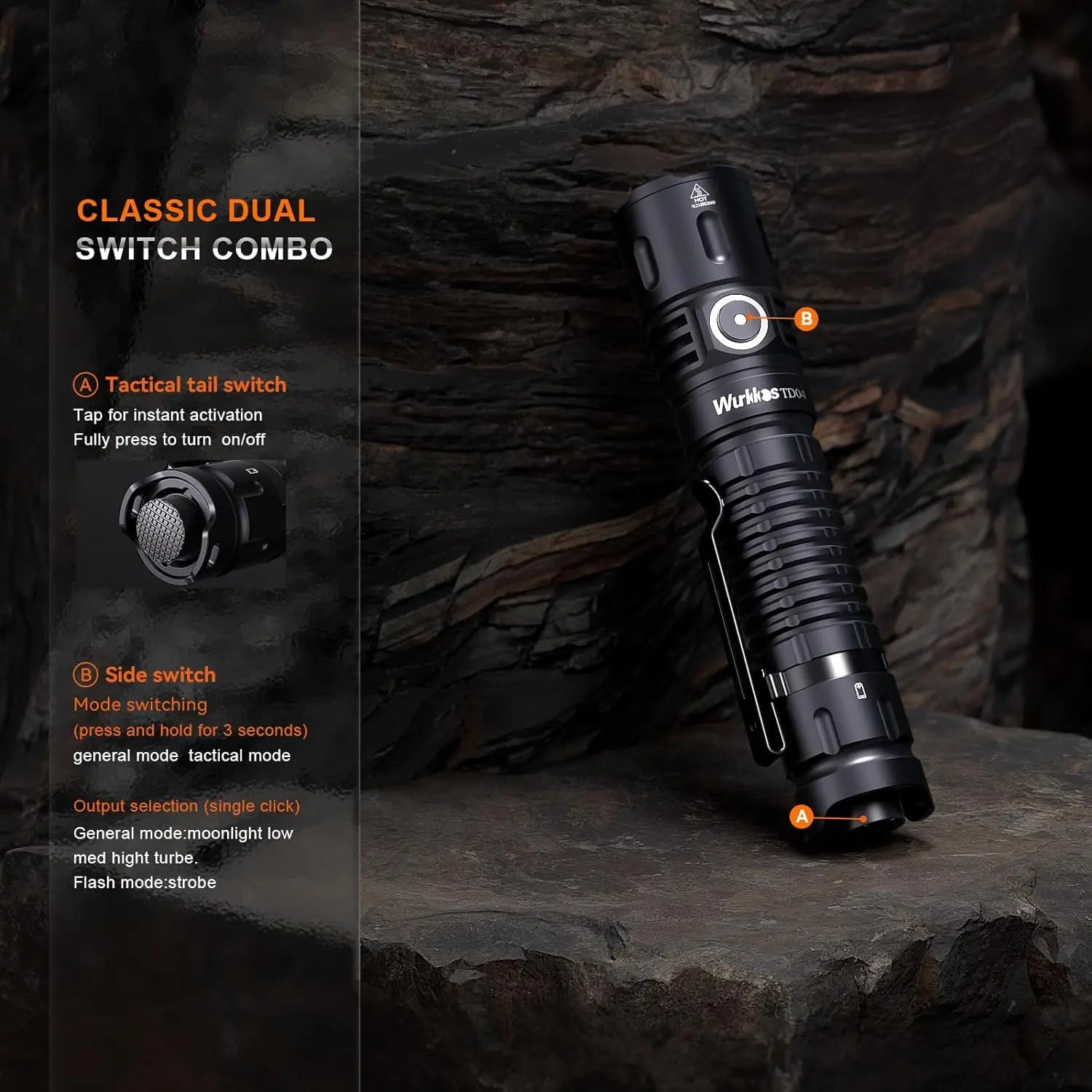

Tail switch
Single press the tail switch to turn the flashlight on or off.
While OFF, double-click the tail switch to activate Turbo

Side switch
While ON, single-click the side switch to cycle through Eco-Low-Medium-High
While ON, double-click the side switch to activate Turbo
While ON, triple-click the side switch to activate Strobe
On Strobe setting, double-click the side switch to cycle through Strobe-SOS-Beacon
While OFF, hold the side switch and click the tail switch at the same time to activate Eco

Group2(Tactical Mode):
While ON, single-click the side switch to cycle through Medium-Turbo
While ON, double-click the side switch to activate Strobe
While OFF, one tap plus one click on the tail switch to activate Strobe
Press and hold the side switch for 3 seconds to toggle between group1 and group 2
LED flashes twice turning on Eco to indicate that flashlight is on Group 1 setting
LED flashes twice turning on Turbo to indicate that flashlight is on Group 2 setting
