Wurkkos TD01C

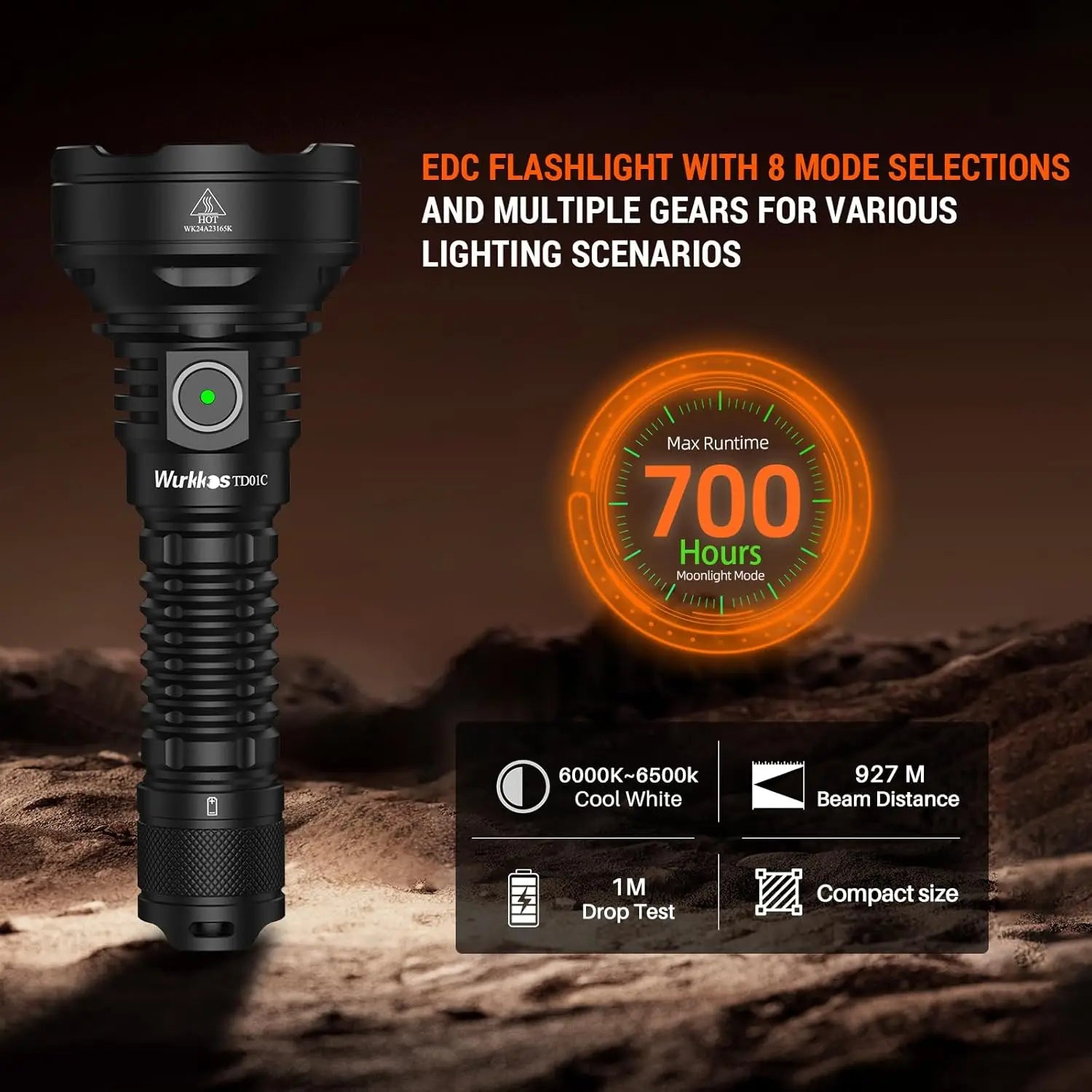

Wurkkos TD01C is a powerful, versatile EDC / outdoor small flashlight, designed for home, EDC or outdoor activities like camping, hiking, fishing or hunting. It is powered by a single 21700 Li-ion rechargeable battery, is rechargeable via USB-C. The flashlight features two mode groups: Tactical mode and lighting mode group, friendly UI to everybody. Besides,TD01C delivers a maximum output of 1800 lumens with a maximum range of 1000 meters. It will be your reliable partner for outdoor activities or daily use.

TD01&TD01C

If you want to know the differences between TD01&TD01C, please visit: https://www.youtube.com/watch?v=zNvIcXKJlhQ

Specifications

☀Emitter:1xLuminusSFT40LED6000-6500K
☀TD01 Driver:FET driver
☀TD01C Driver:Buck driver
☀SwitchType:Tactical Tail Switch and Side Switch
☀Reflector:PMMA Lens
☀Operatingvoltage:3.0V–4.2V
☀Batteryoptions:1x21700Li-Ionbattery
☀Dimension:152mm(length)x59mm(headdiameter)
☀Weight:200±1gram(withoutbattery)
☀Flashlightbody:Aerospace grade 6061 grade aluminum alloy,CNC manufactured to hard-anodized to military grade specification typeIII,anti-abrasive finish to get solid built body,anti-crash geometry and better heat exchange.
☀Toughened mineral glass lens

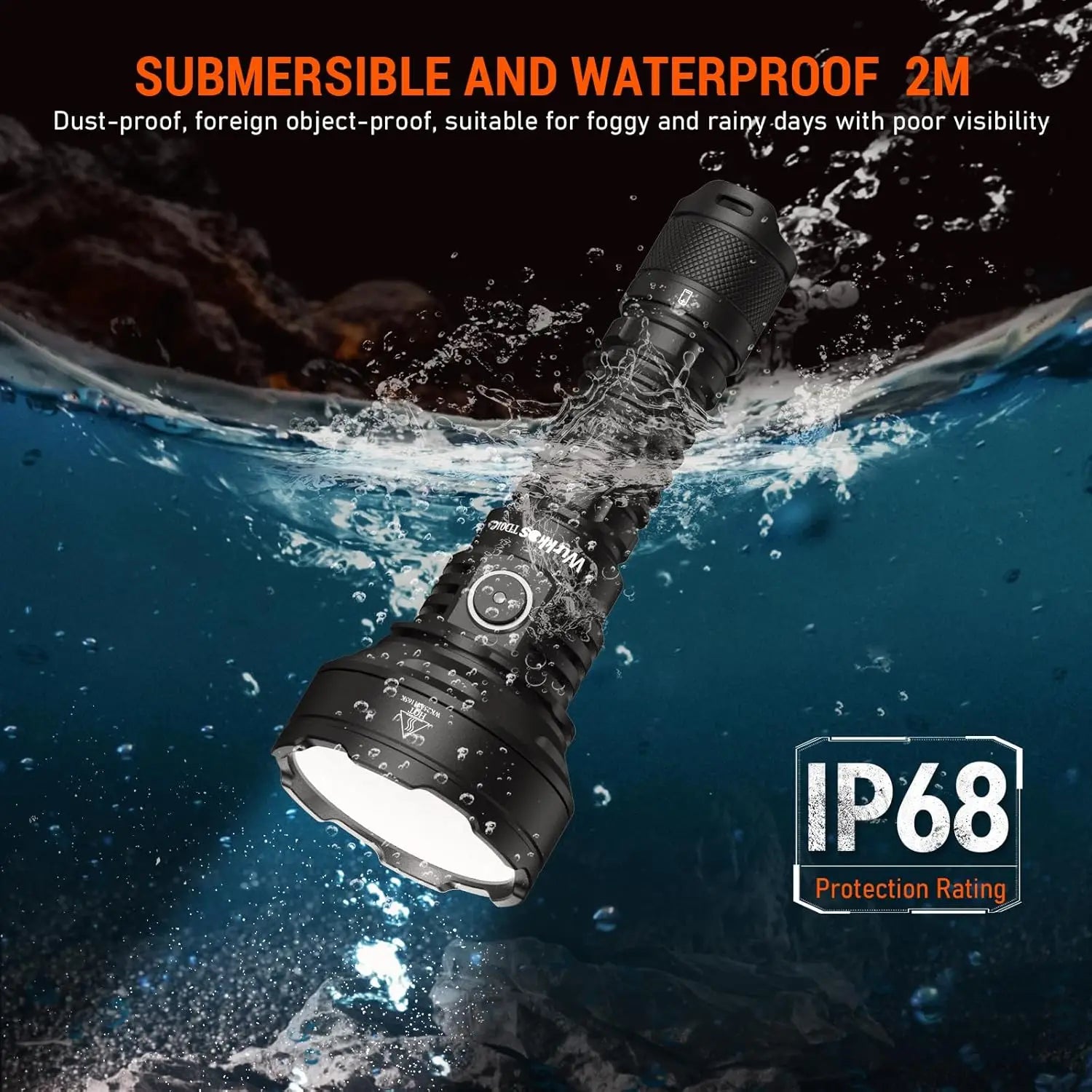

☀Waterresistancei.a.w.IPX-8
☀Mode Memory: memorizes the last brightness level used in the general modes
☀Reverse polarity protection to protect against improper battery installation.
☀Advanced Temperature Regulation(ATR)technology: As the temperature rises,TD01 is programmed to automatically
step down and step up the brightness to prevent over-heating.

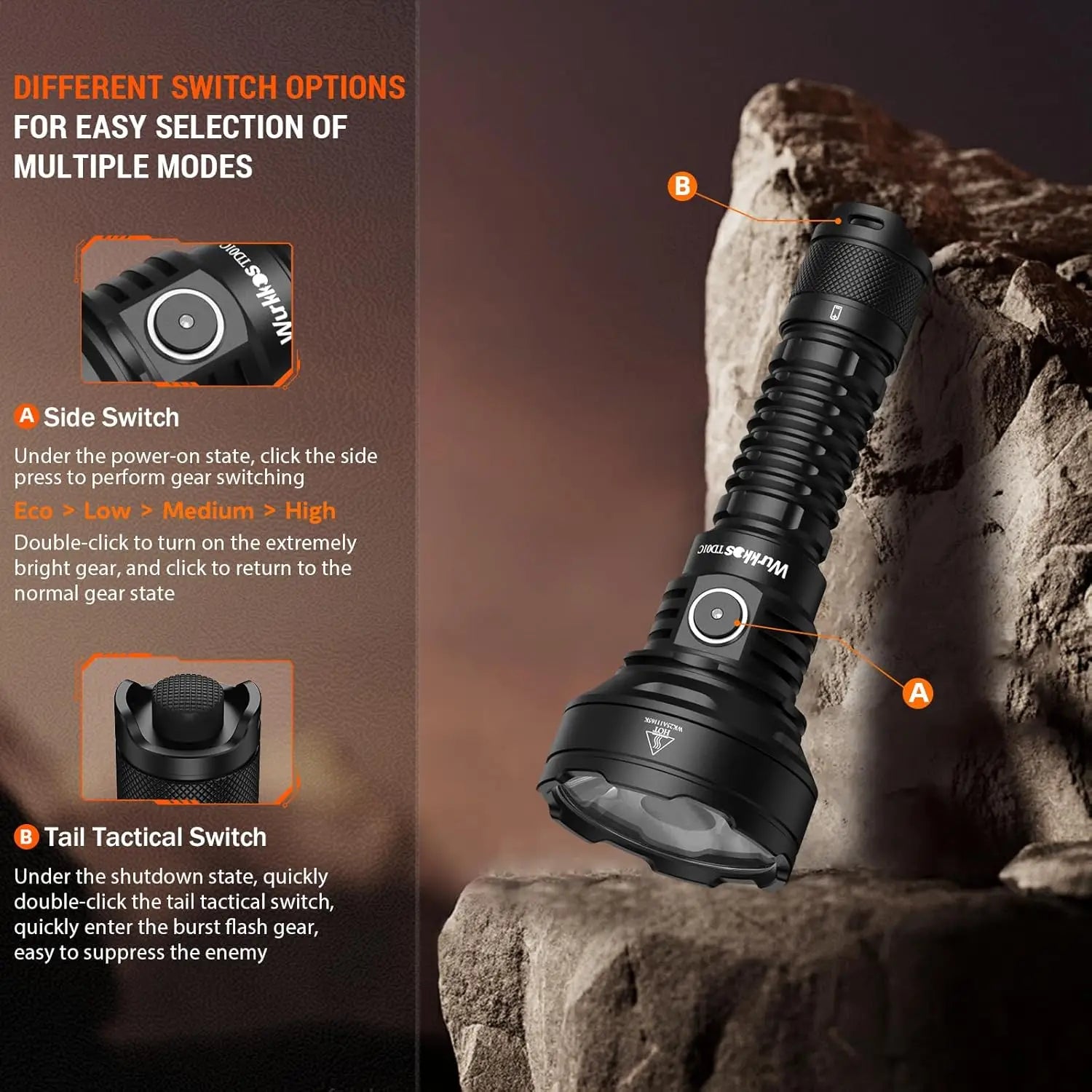

Operation Instructions

The TD01 flashlight control by one tactical tail switch together with one side switch, easy to operate.

Group1 (Stepped mode):
Tail switch
Single press the tail switch to turn the flashlight on or off.
While OFF, double-click the tail switch to activate Turbo

Side switch
While ON, single-click the side switch to cycle through Eco-Low-Medium-High
While ON, double-click the side switch to activate Turbo
While ON, triple-click the side switch to activate Strobe
On Strobe setting, double-click the side switch to cycle through Strobe-SOS-Beacon
While OFF, hold the side switch and click the tail switch at the same time to activate Eco

Group2 (Tactical Mode)：
While ON, single-click the side switch to cycle through Medium-Turbo
While OFF, one tap plus one click on the tail switch to activate Strobe mode
On Strobe setting, double-click the side switch to cycle through Strobe-SOS-Beacon
Press and hold the side switch for 3 seconds to toggle between group1 and group 2
LED flashes twice turning on Eco to indicate that flashlight is on Group 1 setting
LED flashes twice turning on Turbo to indicate that flashlight is on Group 2 setting

Special Notes

✨Due to the TD01 uses TlR optical lens, this lens needs mold synthesis,
so there will be a straight line after mold synthesis (picture show ).Please understand that this is definitely not a quality issue, but it cannot be avoided
✨The gap is only visible at certain angles, it's flawless from a top view,
and since the gap is on the inside, it doesn't affect water resistance.
So if you don't accept this, please carefully before place order! Thank you!

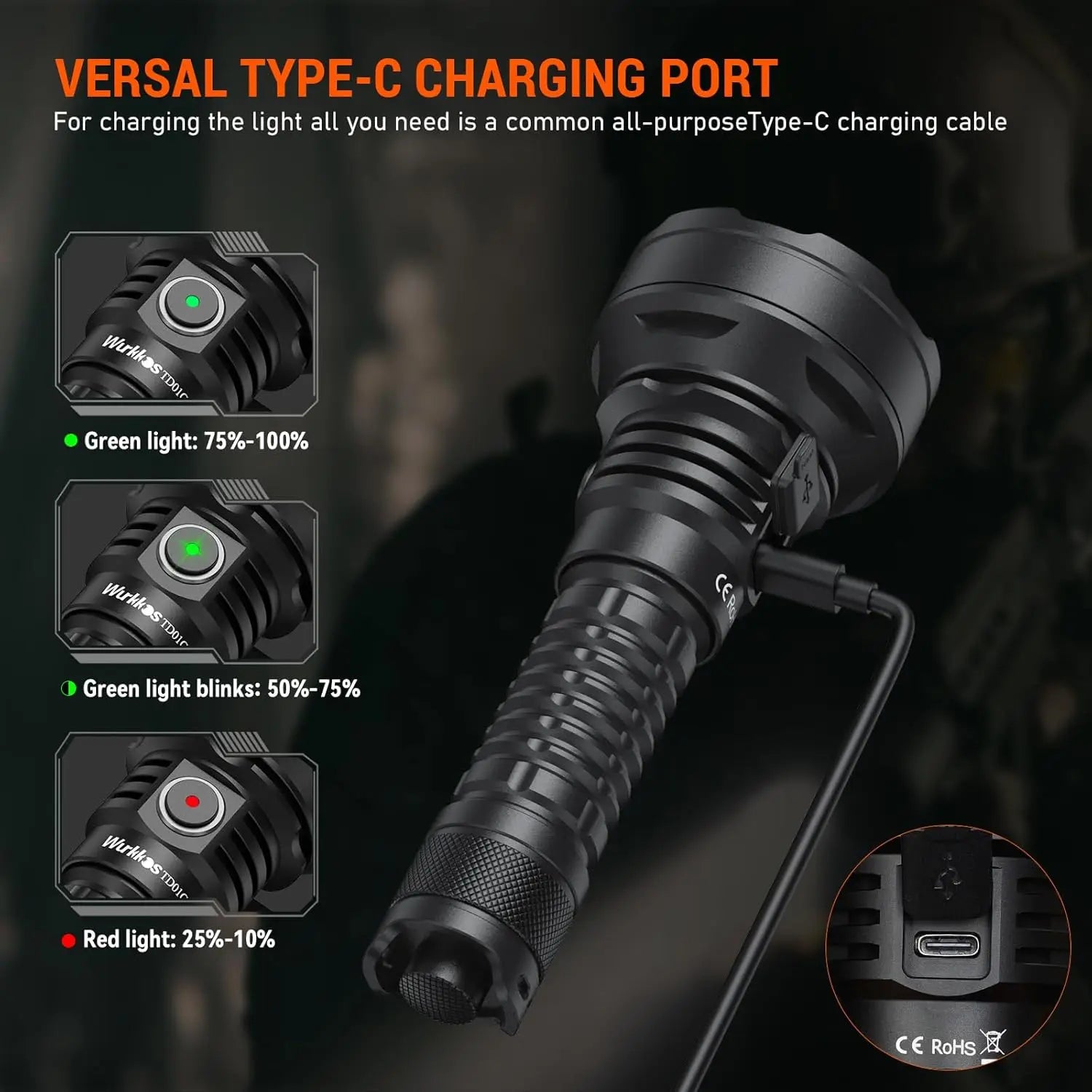

Power Indicator

The LED indicator in the side switch shows the power status for 5 seconds after turning TD01C on.
Green = remaining battery level is about 50-100%.
Red = remaining battery level is about 20-50%.
Flashing Red = critical power (less than 20%), replace or recharge battery as soon as possible.
