• Excellent Generator: The generator adopts 500W permanent magnet rotor alternator, a wind speed of up to 42.65ft/s, and the starting wind speed is lower than that of other wind turbines, and the power generation increases gently, so it can generate more power than other wind turbines within a certain range. And adopts a high-power tracking intelligent microprocessor controller to effectively regulate the current and voltage.

• Low-noise Operation: Adopting a precision double-bearing design and a quiet and reliable rotor, it effectively reduces the operating noise, which is less than 62dB, not affecting the tranquility of the surrounding environment.

• Easy Assembly: Clear installation instructions are provided to help you get started and complete the installation quickly. In addition, the humanized flange mounting design makes the installation, maintenance, and overhaul of the equipment more convenient.

• High-quality Material: The turbine's blade is made of aluminum alloy, and the surface is sprayed with plastic, which can withstand bad weather and ensures the product's long and stable operation.

• Various Application: With high wind energy utilization and efficiency, the wind turbine can be widely used in charging for home monitoring, motor home, boats, gazebos, chalets, marine.

This 500W wind turbine has been carefully designed for you who seek green energy combined with modern aesthetics. Unlike traditional horizontal axis wind turbines, this product utilizes an advanced helical design principle that allows it to operate efficiently in low wind speed environments,and with easy installation and maintenance and low noise, it can be efficiently integrated into a variety of environments.

Details

High-quality Controller:It adopts a high-power tracking intelligent microprocessor controller to effectively regulate the current and voltage.

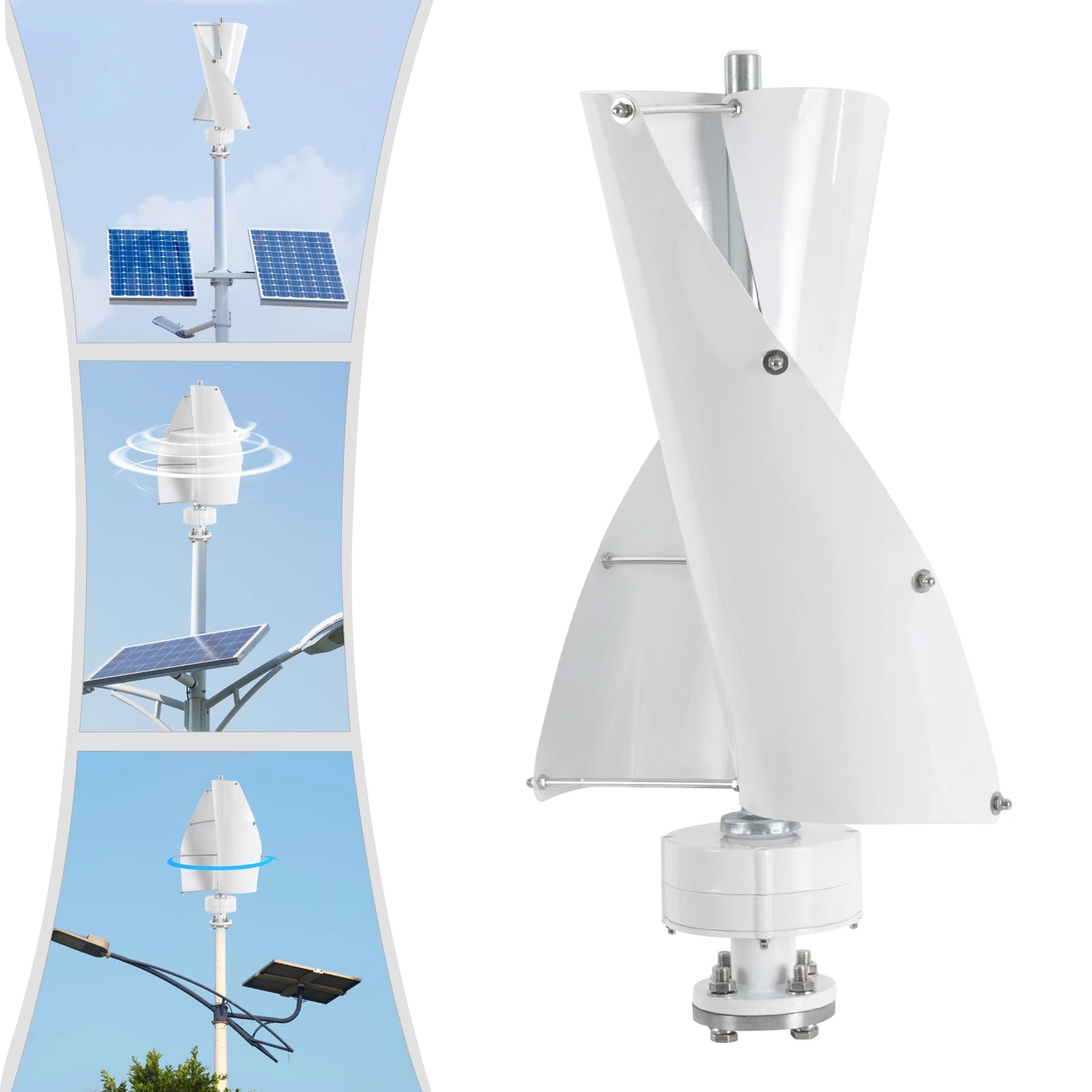

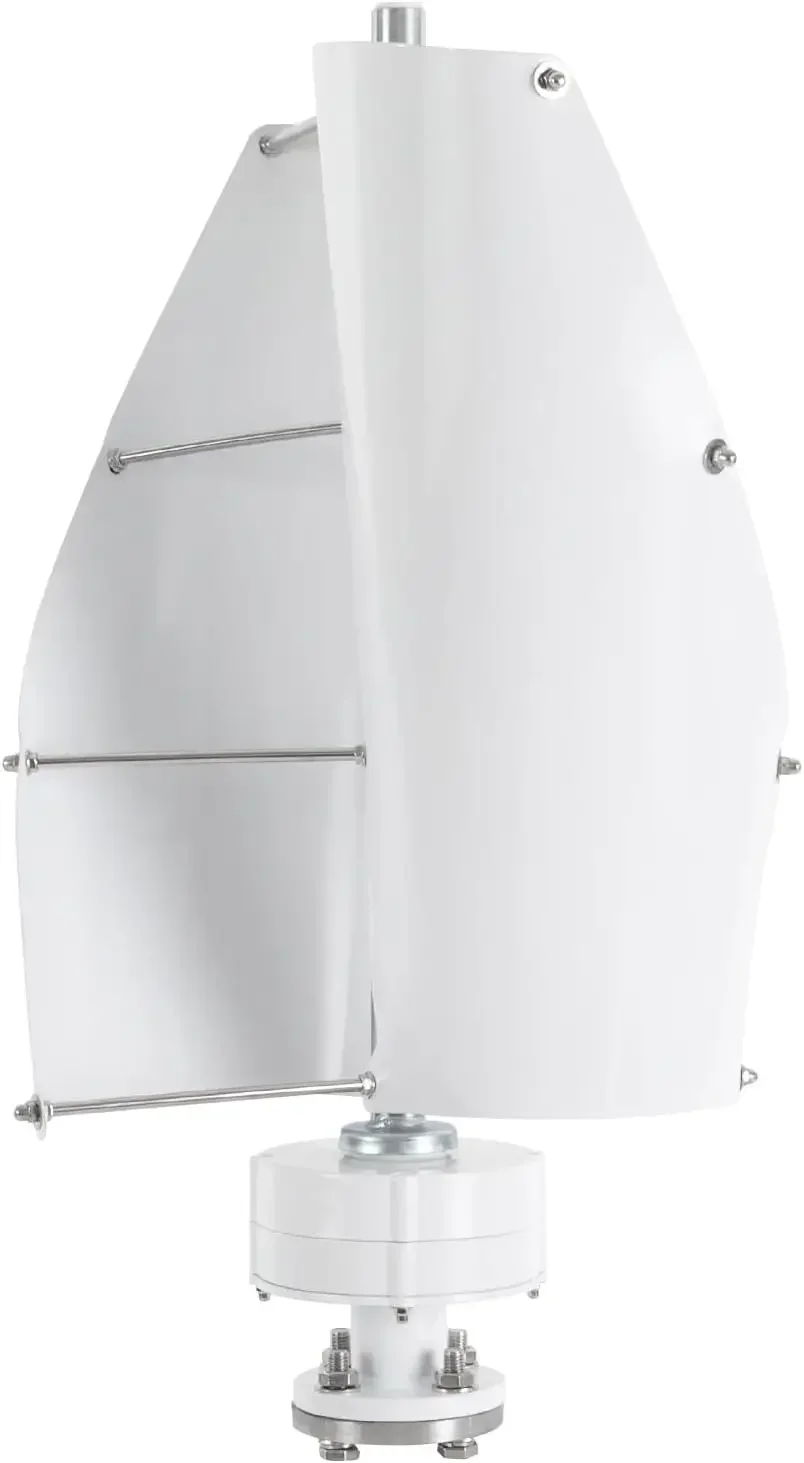

Spiral Design: It adopts the spiralde sign principle, rotating in the horizontal plane brings low wind pressure,which can withstand super strong typhoons.

Application

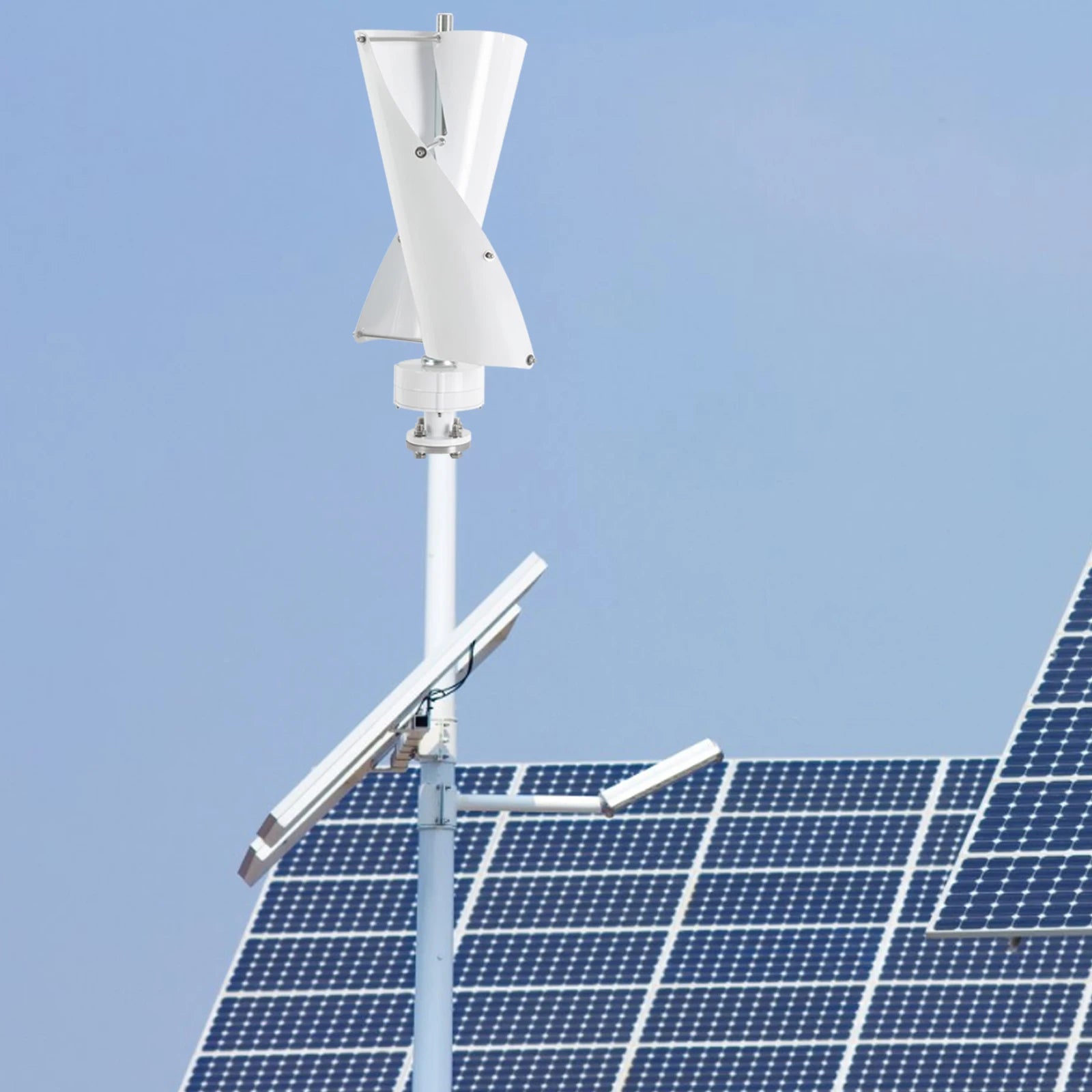

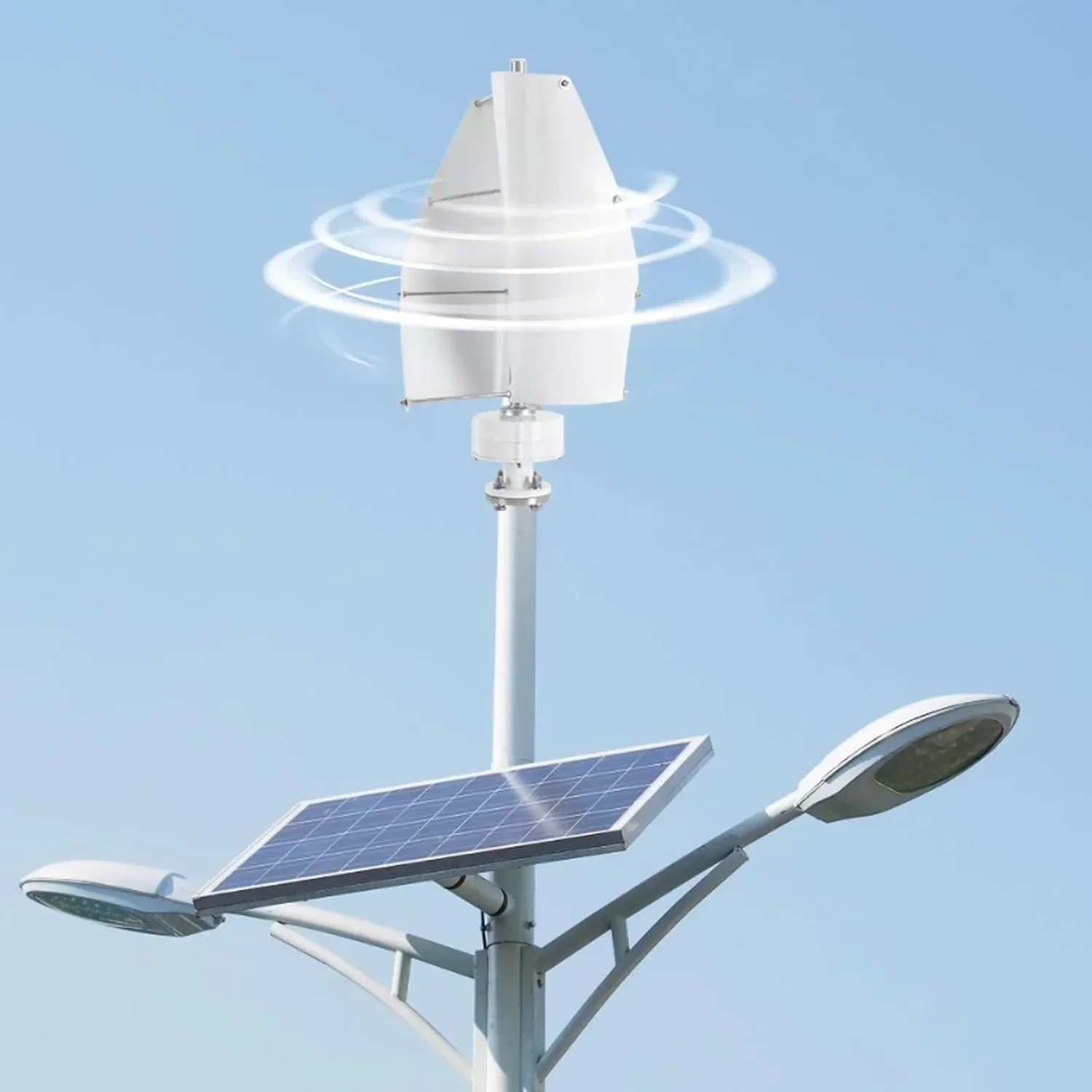

It is suitable for home, business, and industrial energy supply inboats, gazebos, cabins, or mobile homes, and on top of streetlights.

Specification

Material: Iron, Aluminum Alloy, All Copper

Color: White and Blue

Process: Spray-plastic Treatment

Model: NE-500W

Blade Numbers: 2

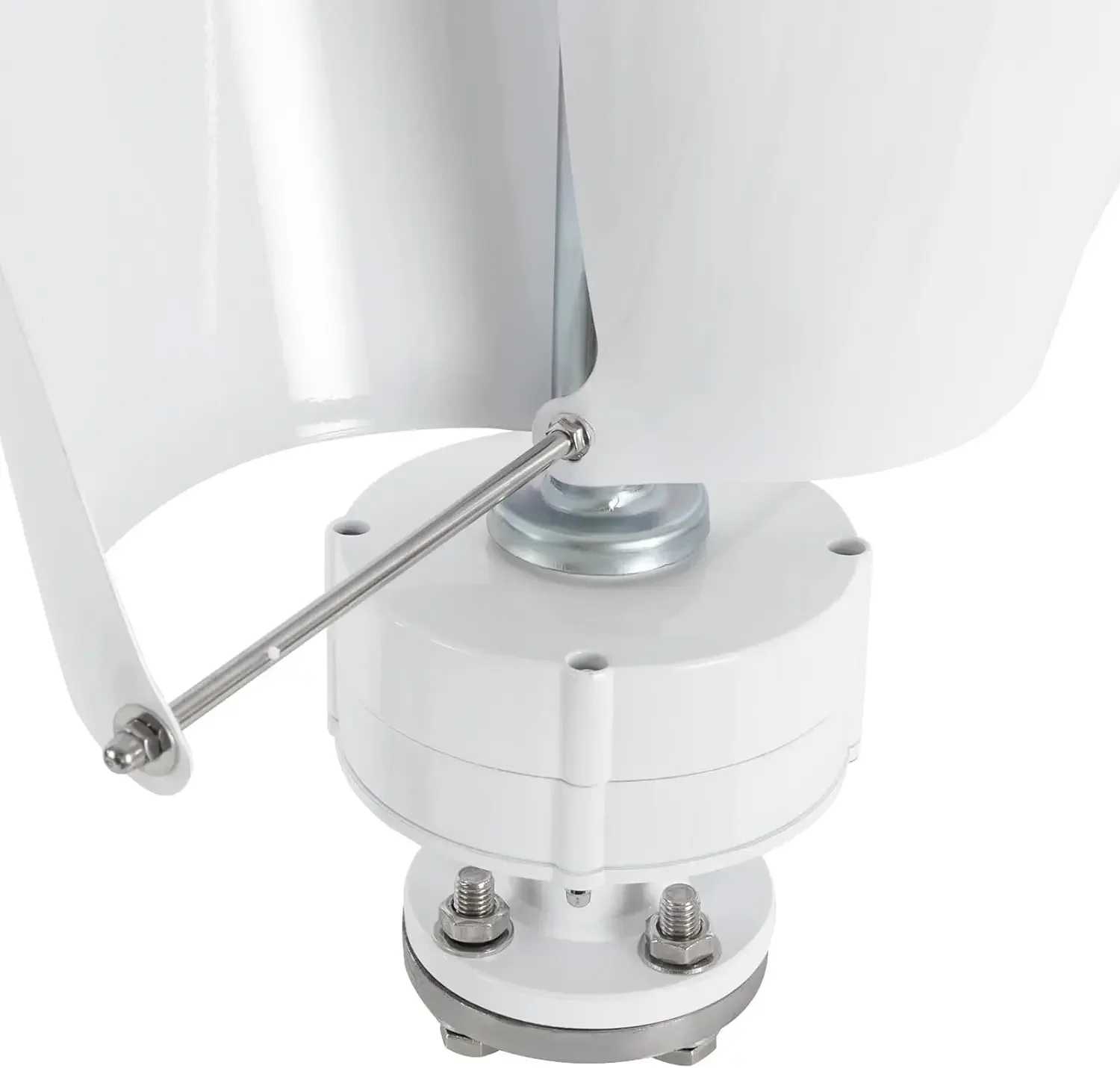

Flange: DN25

Rated Battery Voltage: 12V/24V

IP Protection Level: IP67

Wheel Diameter: 0.4m/1.31ft

Rated Power: 500W

Rated Voltage: 12V

Rated Wind Speed: 13m/42.65ft/ s

Control System: Electromagnetism

Assembly Required: Yes

Noise: Less Than 62dB

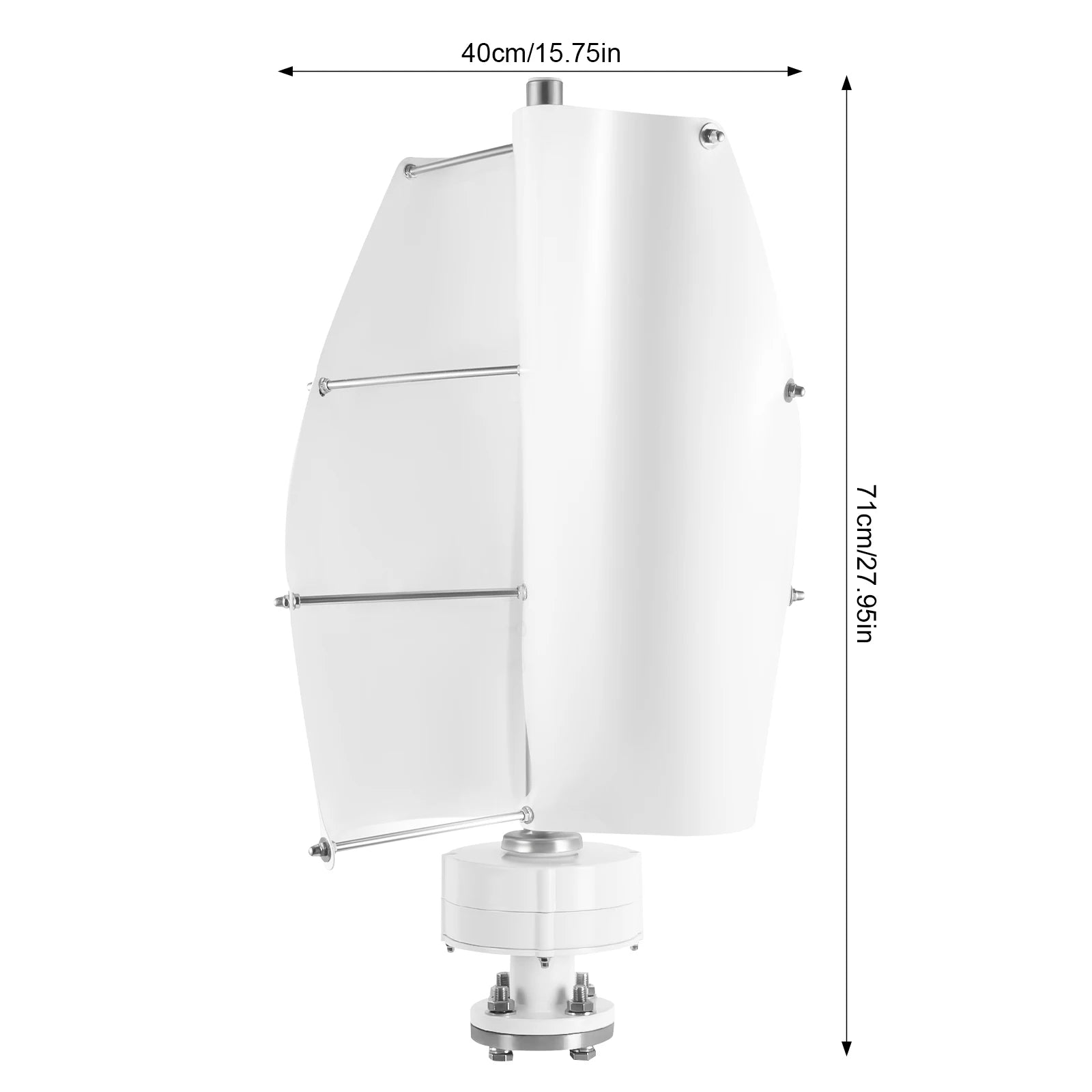

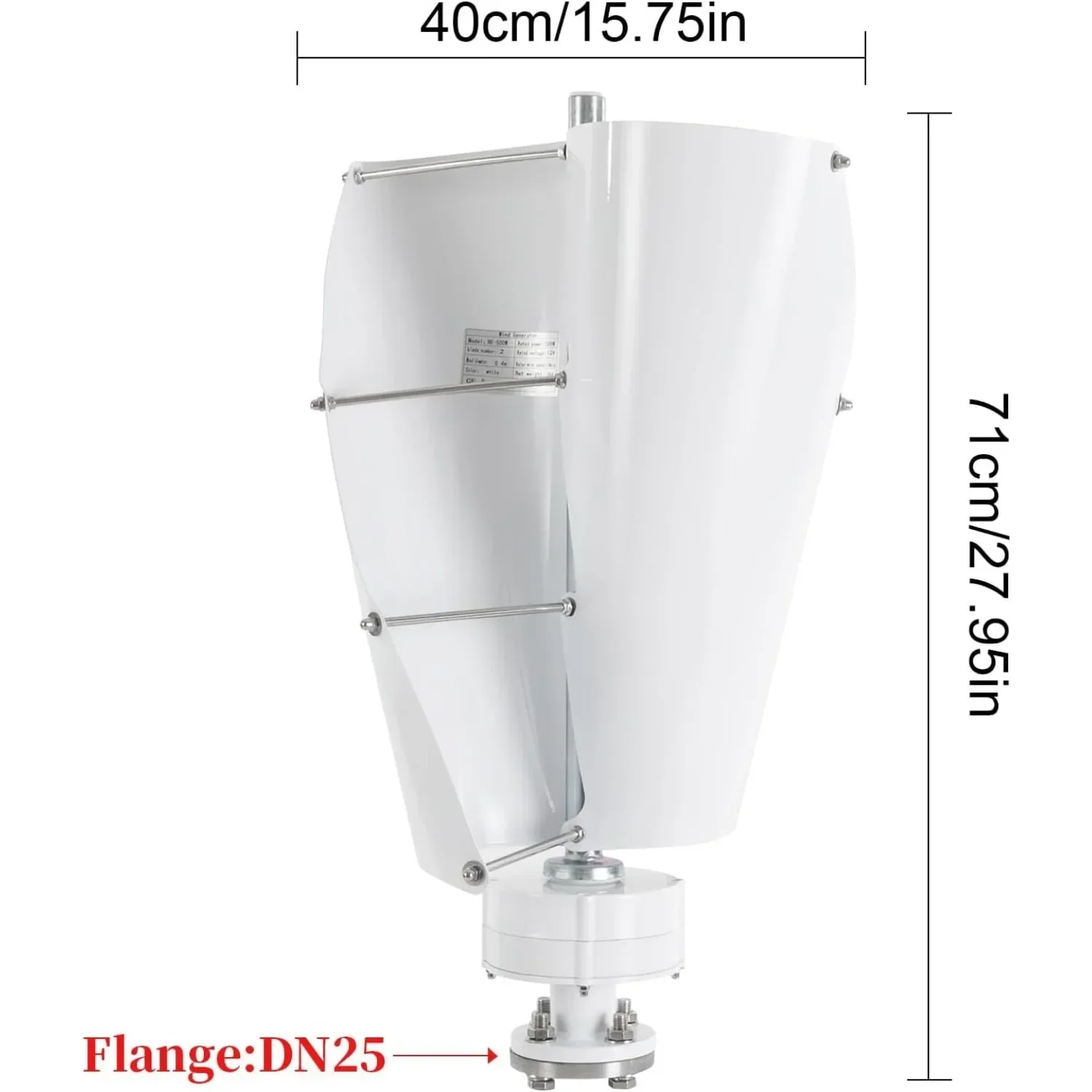

Product Size(L*H): 40*71cm/15.75*27.95in

Flange Connection Size: φ14/0.55in, φ85/3.35in, φ115/4.53in

Number of Connection(Smallest) Holes: 4

Flange Thickness: Min14mm/0.55in

Pylon to Flange Distance: Min20mm/0.79in

Adaptable Pole Size Range: φ56-φ62 mm/φ2.22-φ2.44in

Package Size: 80.8*33*21cm/31.81*12.99*8.27in

Net Weight: 9kg/19.84lbs

Gross Weight: 10kg/22.05lbs

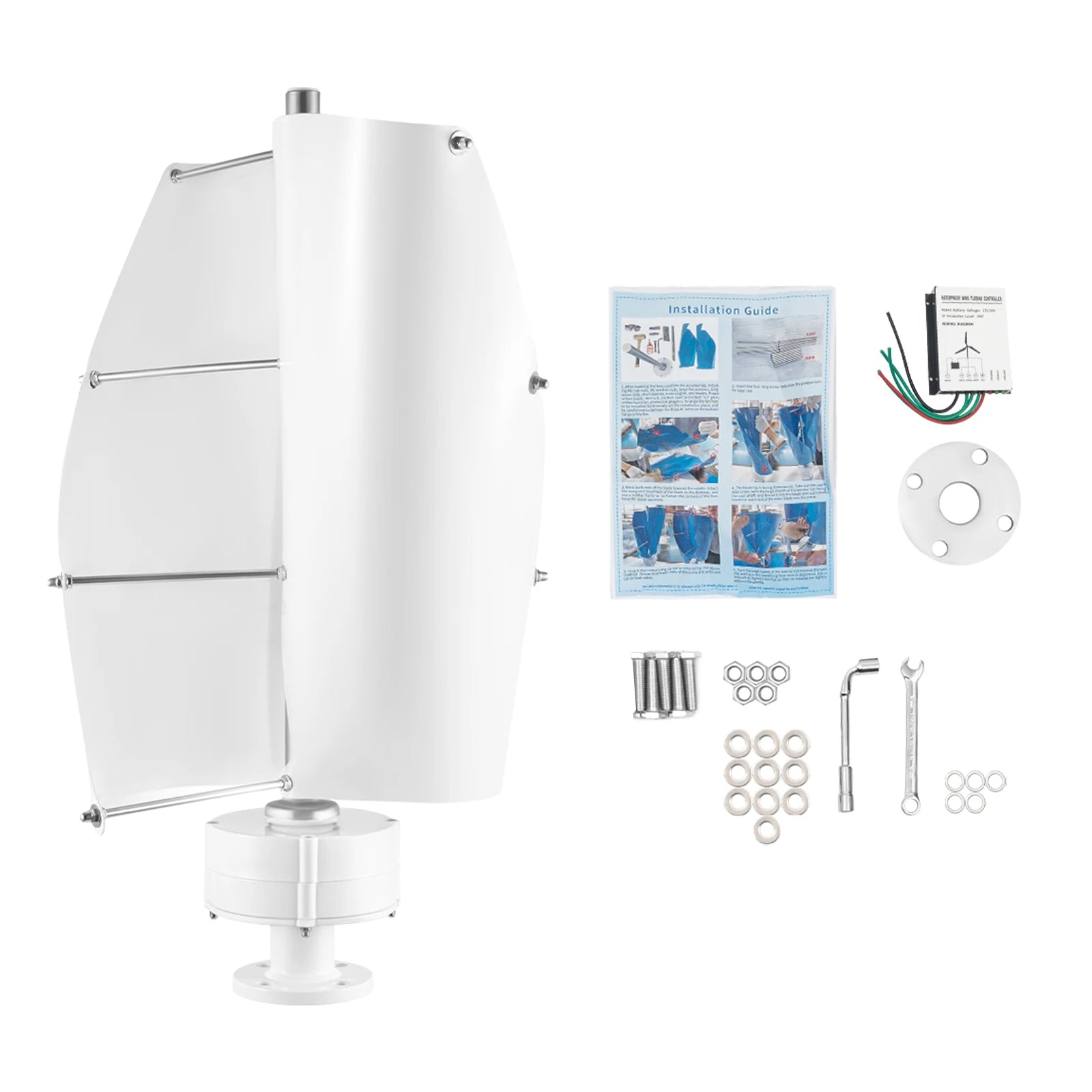

Package Included

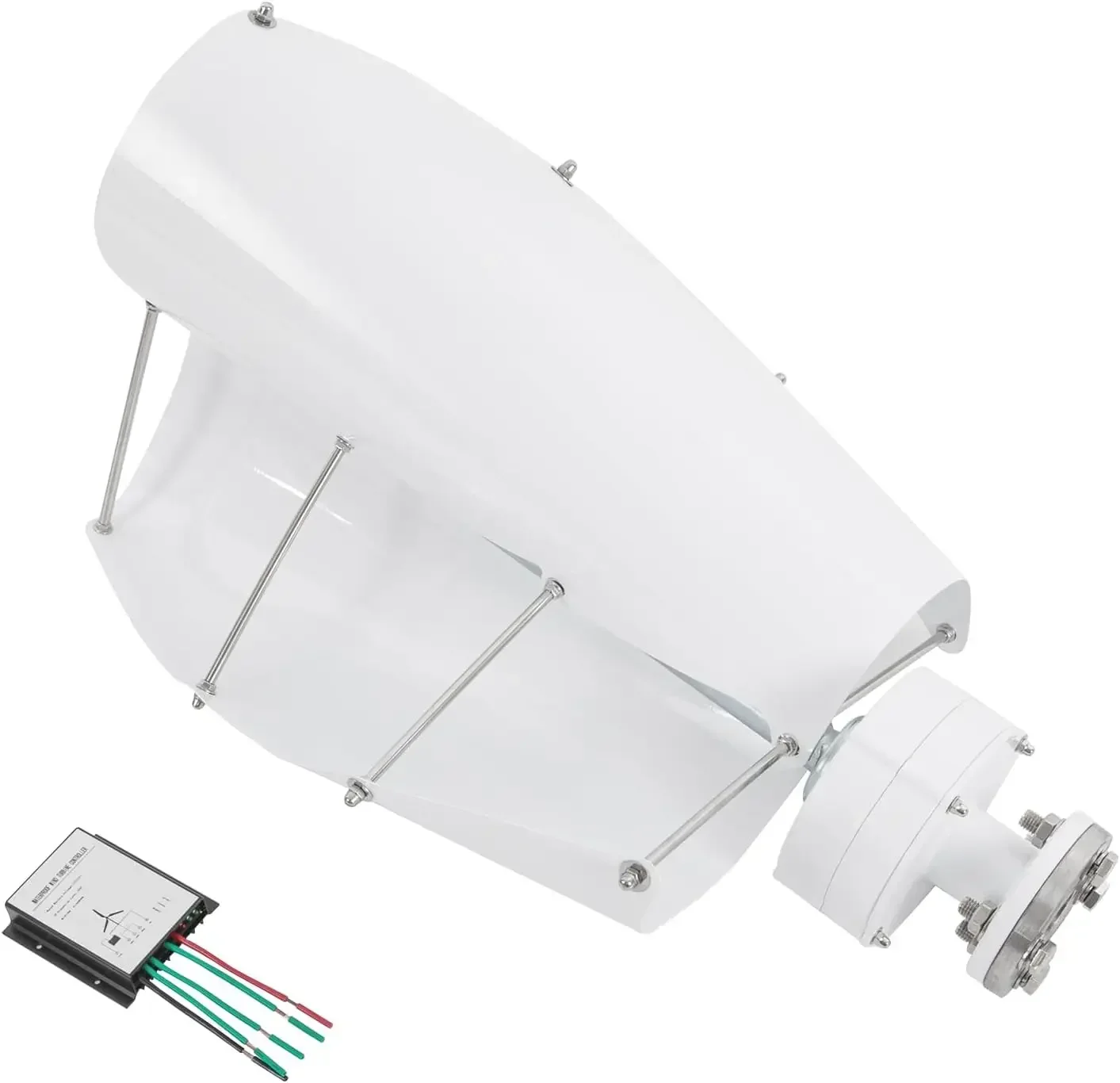

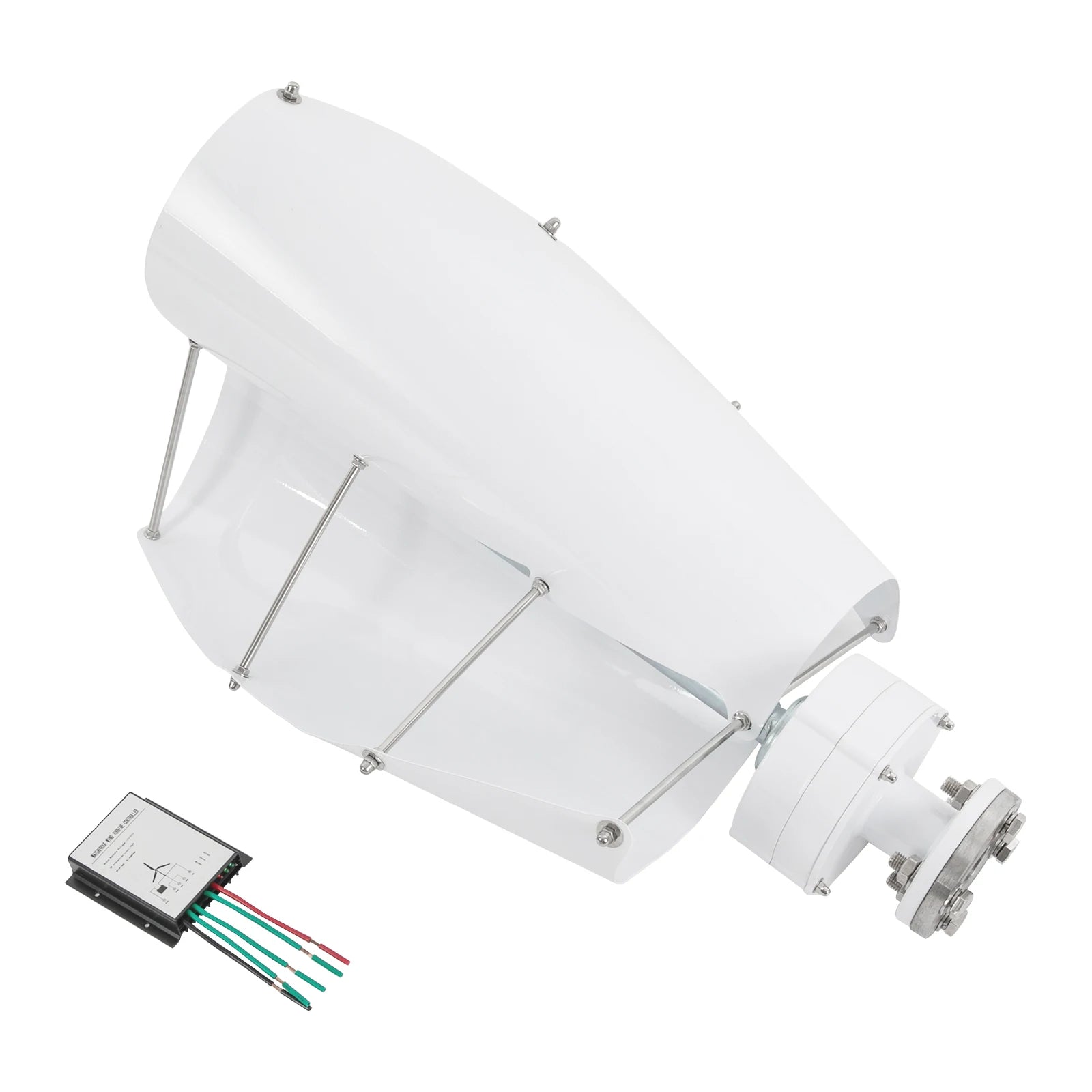

1* Wind Turbine

1* Controller

1* English Manual

Notes

1. Please check the style and size before purchasing.

2. Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.

3. Please connect the three green wires of the controller to the three wires of the fan (without distinguishing the poles),and the red and black wires to the positive and negative poles of the battery respectively.

4. Please be sure to use gel batteries or lead-acidbatteries, not lithium batteries.
