SPECIFICATION

Adjustment: MIL

Adjustment Range: More Than 50MIL

Battery Type: CR2032

Click Value: 1/5MIL

Exit Pupil: 16.0-4.0mm

Eye Relief: 101mm / 4.0 inch

Field of View: 109.2-18.2 feet@ 100 yards

Focal Plane: Second Focal Plane

Function: Lens

Illumination: 5 levels red & green

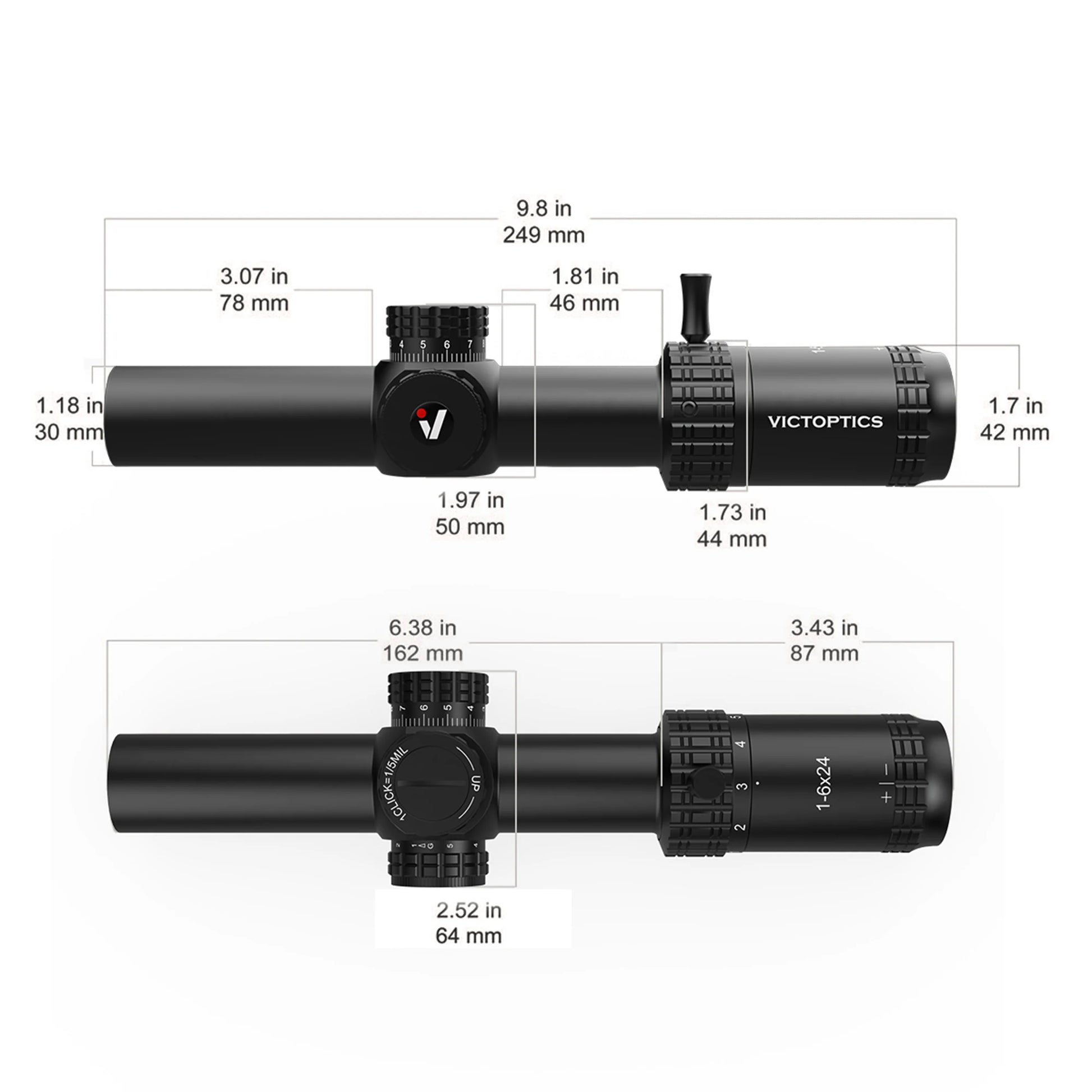

Length: 249mm / 9.8 inch

Lens coating: Fmc

Magnification: ≤6,1-6x

Model Number: OPSL22 OPSL23

Objective Lens Dia: 24mm

Ocular Lens Dia: 36mm / 1.4 inch

Ocular Lens Length: 59mm / 2.3 inch

Optics Coating: FMC

Parallax Setting: 100 yards

Reticle: Etched glass VI-CTSIX

Side Focus: No

Tube Dia: 30mm,30mm

Type: RIFLE

Warranty: 1 Year

Weight: 425g / 15.0oz

illumination: Yes



Feature

· True 6x Zoom Factor

· Edge-to-Edge Image without Inside Dark Ring Around Image

· 30mm Monotube Made of 6061 T6

· True 1x Power That Can Use Two Eyes Open For Shooting

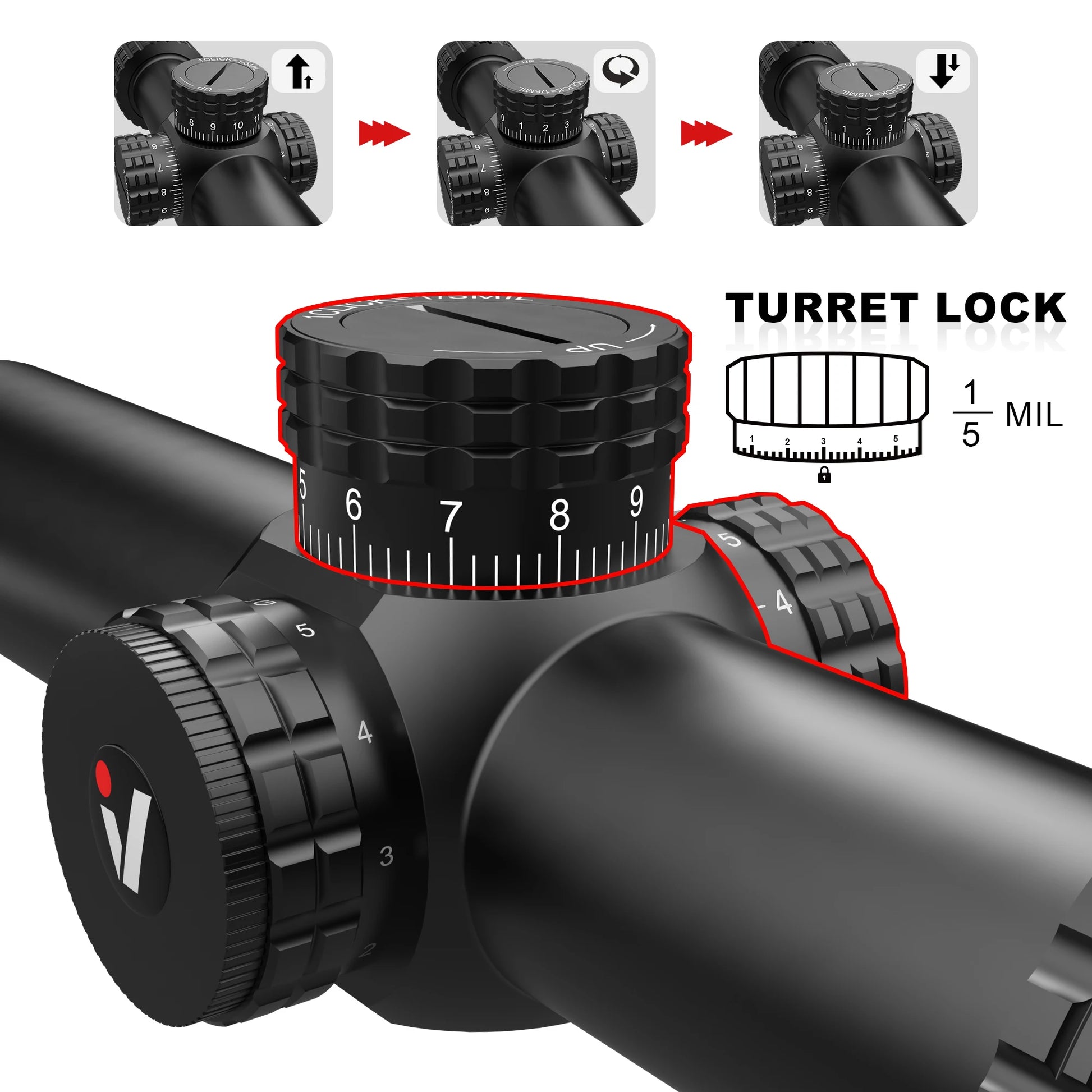

· 1/5 MIL Adjustment w/ Zero Reset & Turret Lock Features

· Black Matte Finish

· Fully-multi Coated

· Wide Field of View

· 101mm (4.0") Long Eye Relief

· Red & Green Illumination

· Etched Glass VI-CTSIX MIL Reticle Center Dot & Circle Illuminated with Digital Lines and Dots









Feature-30mm 1-Piece Extended  Picatinny AR Mount

• 0 MOA Type, AR Platform Tactical Picatinny Mount, Four Screws Per Ring

• 38 mm 1.5 in Bottom to Ring Center, Extremely Accurate w/ Full CNC Machined

• Light Weight, 21 mm Picatinny Mount with Two Crossing Bolts & Anti-Retreat Bar

Specification

· Ring Diameter: 30mm

· Overall Length: 139m / 5.5"

· Overall Height: 62mm / 2.4"

· Mount Length: 120mm / 4.7"

· Ring Width: 46mm / 1.8"

· Central Height: 38mm / 1.5", bottom to center

· Ring Length: 21mm / 0.8"

· Gap Length: 73mm / 2.9"

· Material: 6061-T6 aluminum alloy

· Weight: 155g / 5.5oz

· Mount: 1913 Picatinny

· Screws per ring: 4

· High-durability aluminum alloy

· Do not use over 18 inch / pounds of torque on the scope rings' screws

· Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the picatinny rail

· Designed for hard and rigorous use

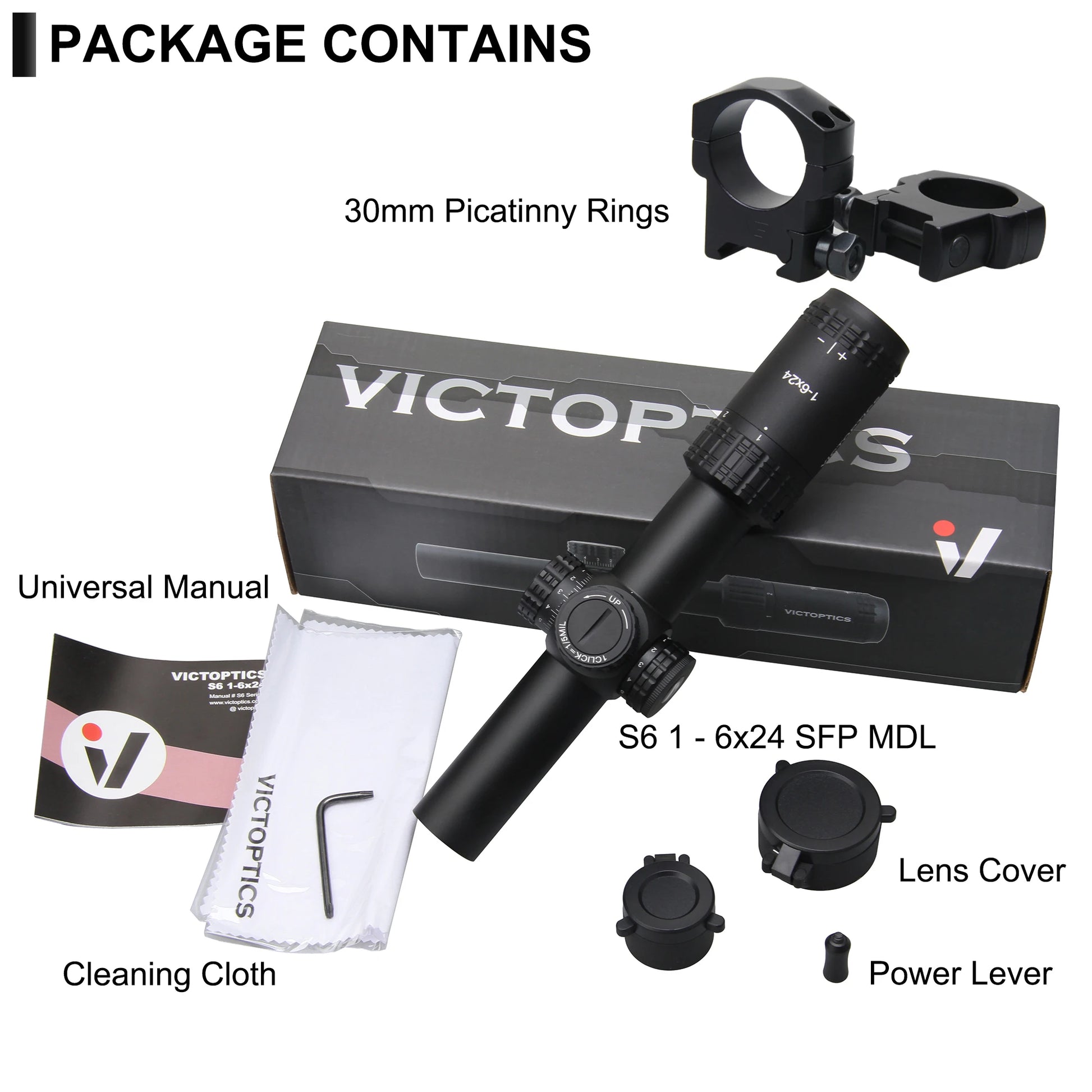

· With hex key and retail package, hex key can be used to fasten the clamp nuts
