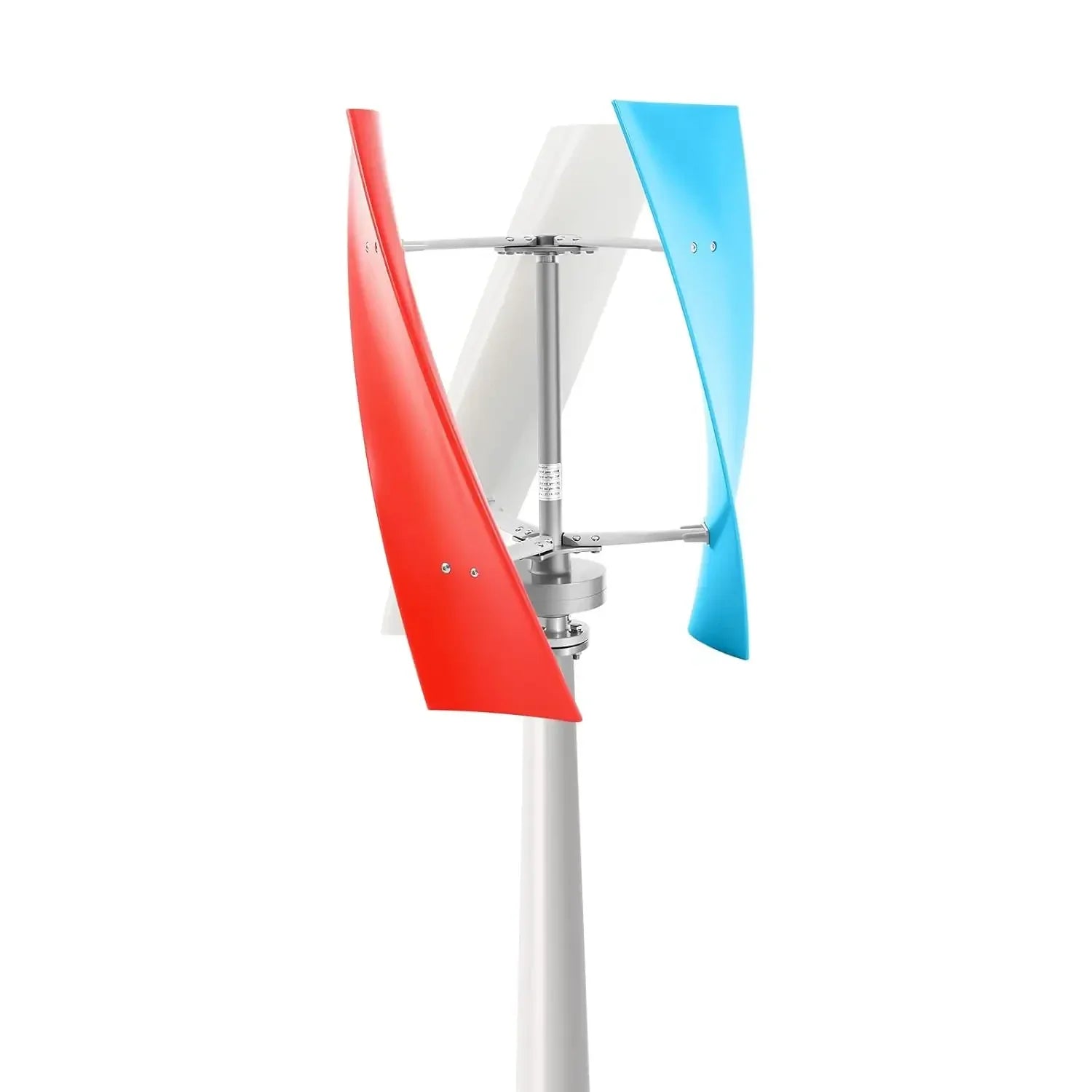

About this item

• 【 HIGH-QUALITY BLADES 】The blade material is synthetically injection molded with high-strength FRP material. At the same time, the fashionable spiral blade is also designed with aerodynamics to make the rotor run smoothly, reliably and quietly. Coreless PMG provides lower start torque/wind speed and longer service life. Maximum RPM protection.

• 【 POWERFUL PERFORMANCE 】Designed with three-phase AC PMG, it boasts low torque, high-power tracking intelligent microprocessor that can effectively regulating the current and voltage. It obviously increases wind energy utilization and annual power generation.

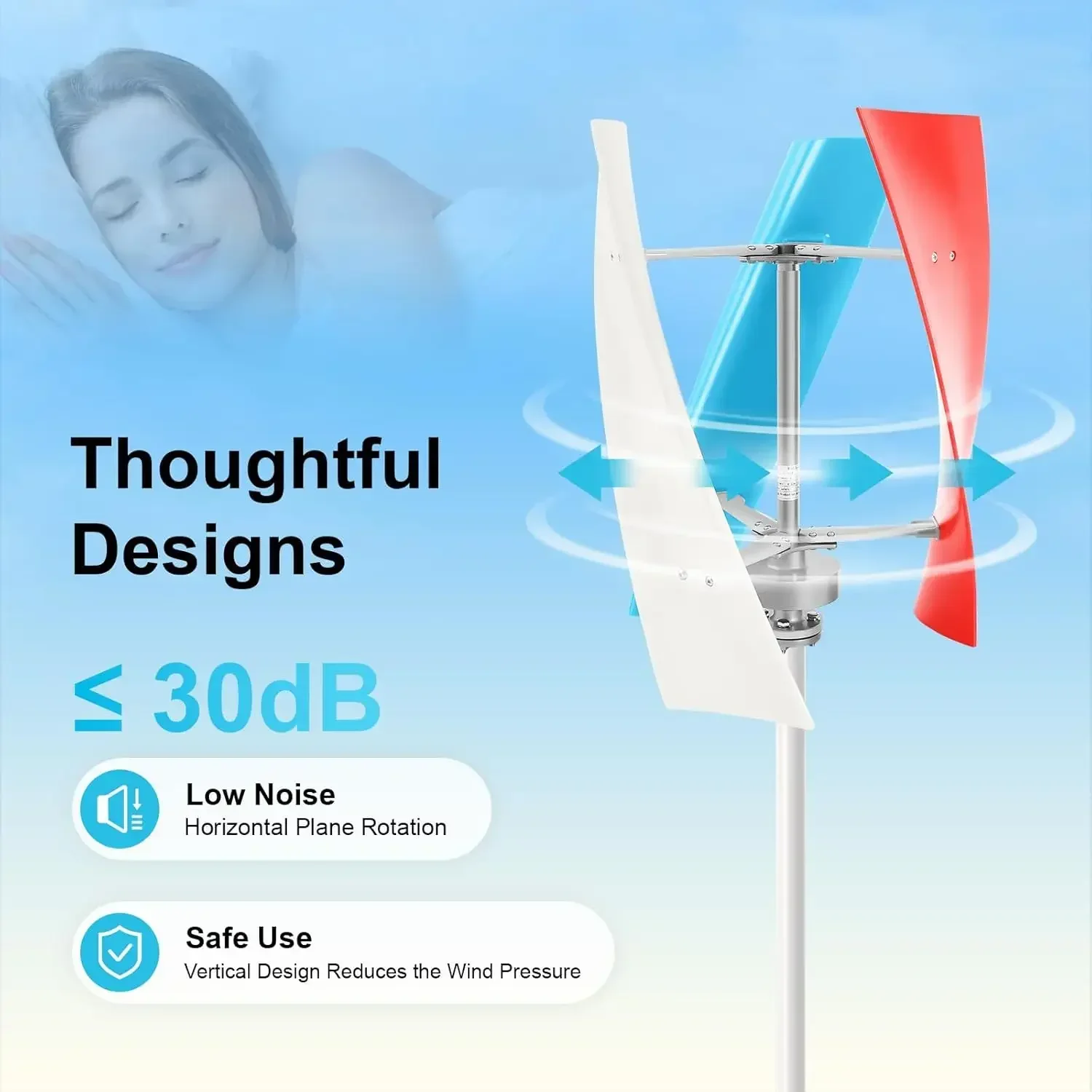

• 【 STABLE AND NOISELESS 】With dual bearings, the fan movement is more stable. Low vibration and low noise. In addition, with its compact shape, it has the lowest starting wind speed and a larger windward area, enabling it to generate electricity at lower wind speeds.Double-bearing structure ensures stable operation, large windward area, can generate electricity at low wind speeds, and save electricity.

• 【 WIDE RANGE OF APPLICATION 】This wind turbine is ideally suited for boats, gazebos, cabins or mobile homes, as well as for green windmills, home, corporate and industrial energy supply.

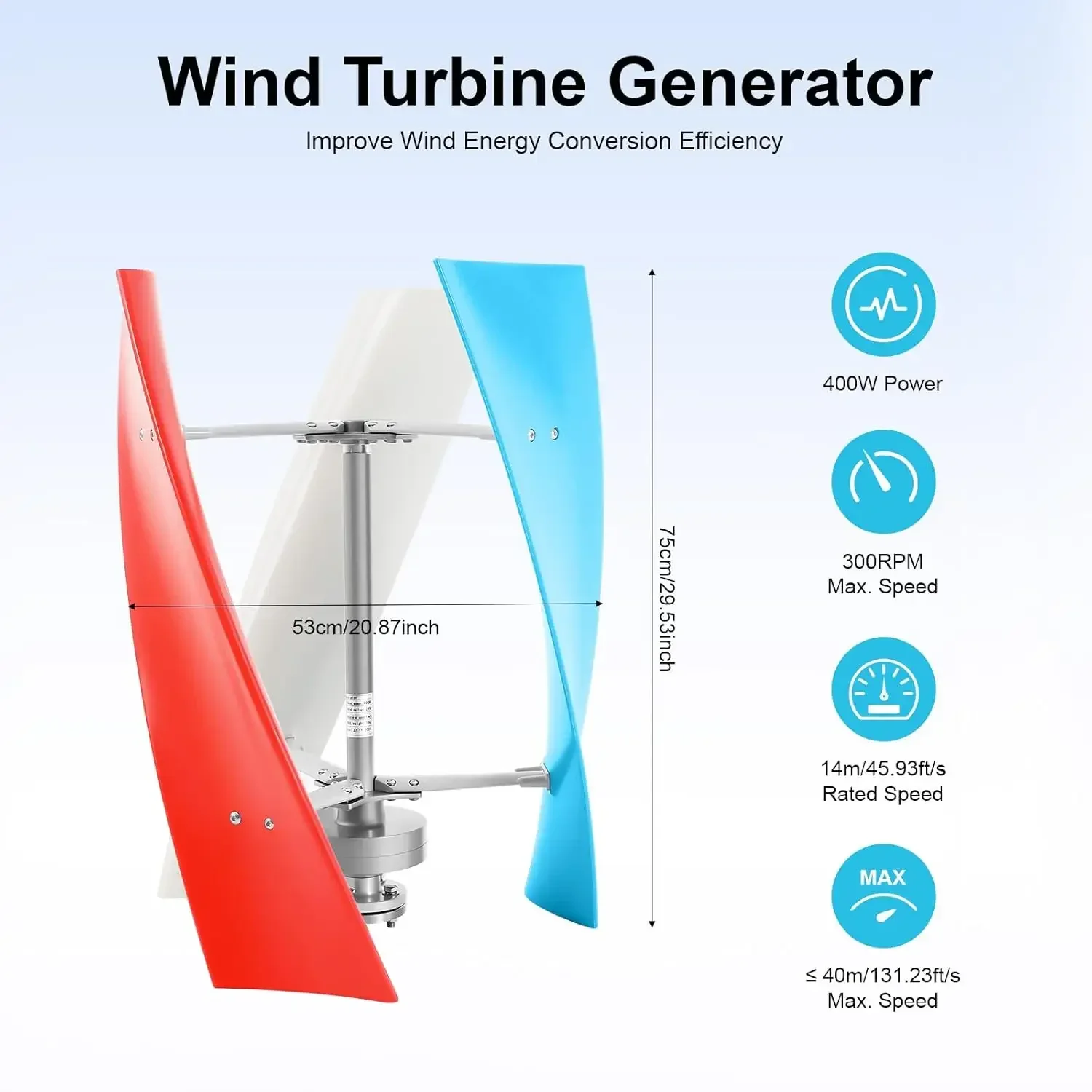

Specification:

Controller System: Electromagnetism

Starting Wind Speed: 1.3m(12inch)/s

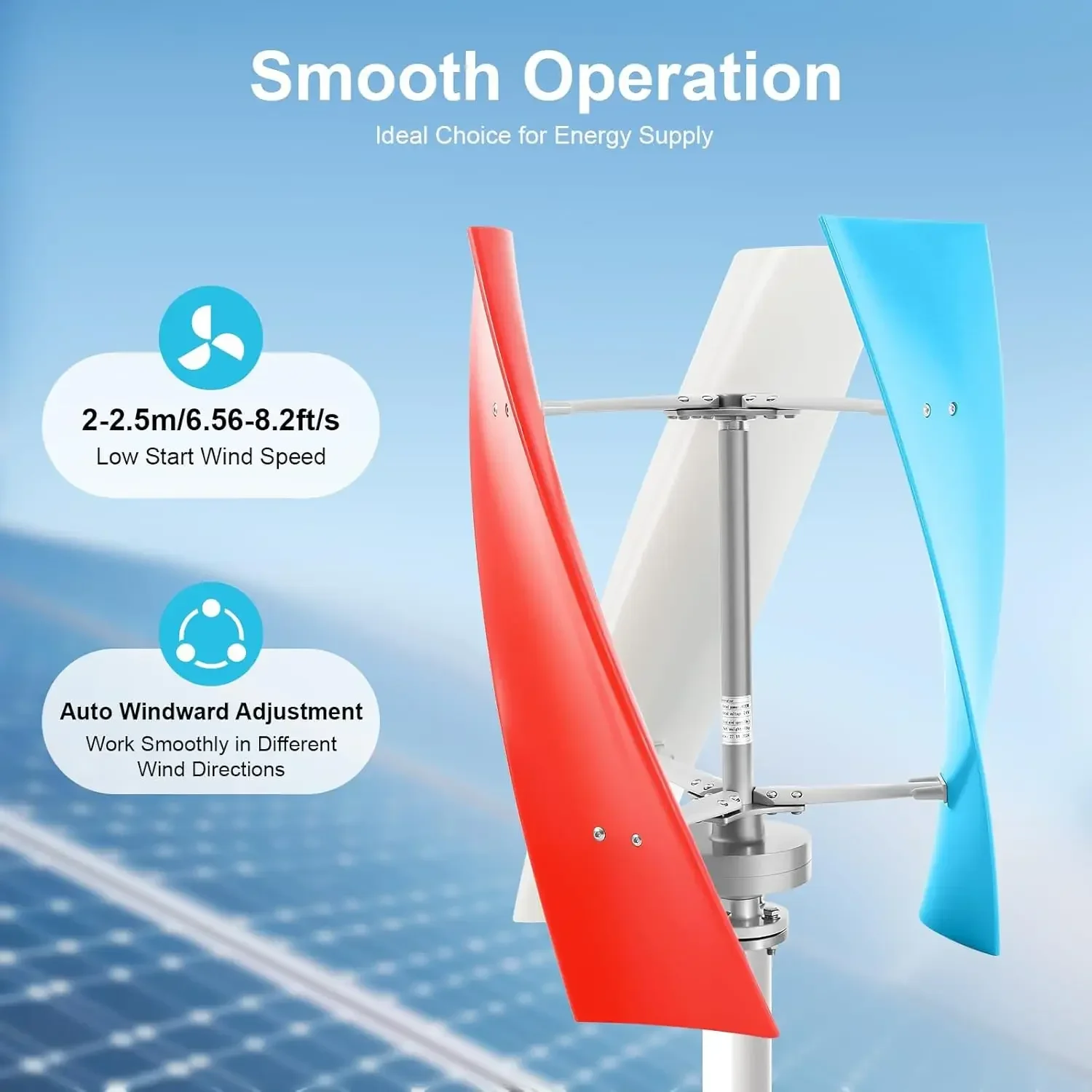

Cut-in Wind Speed: 2.0-2.5 m/s

Rated Wind Speed: 14m/s

The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s

Blades Quantity: 3 (with Different Colors)

Diameter of Blades: 0.6m/24inch

Blades Height: 0.8m/31inch

Speed Regulation: Automatic

Rated Power: 400W

Max Power: 450W

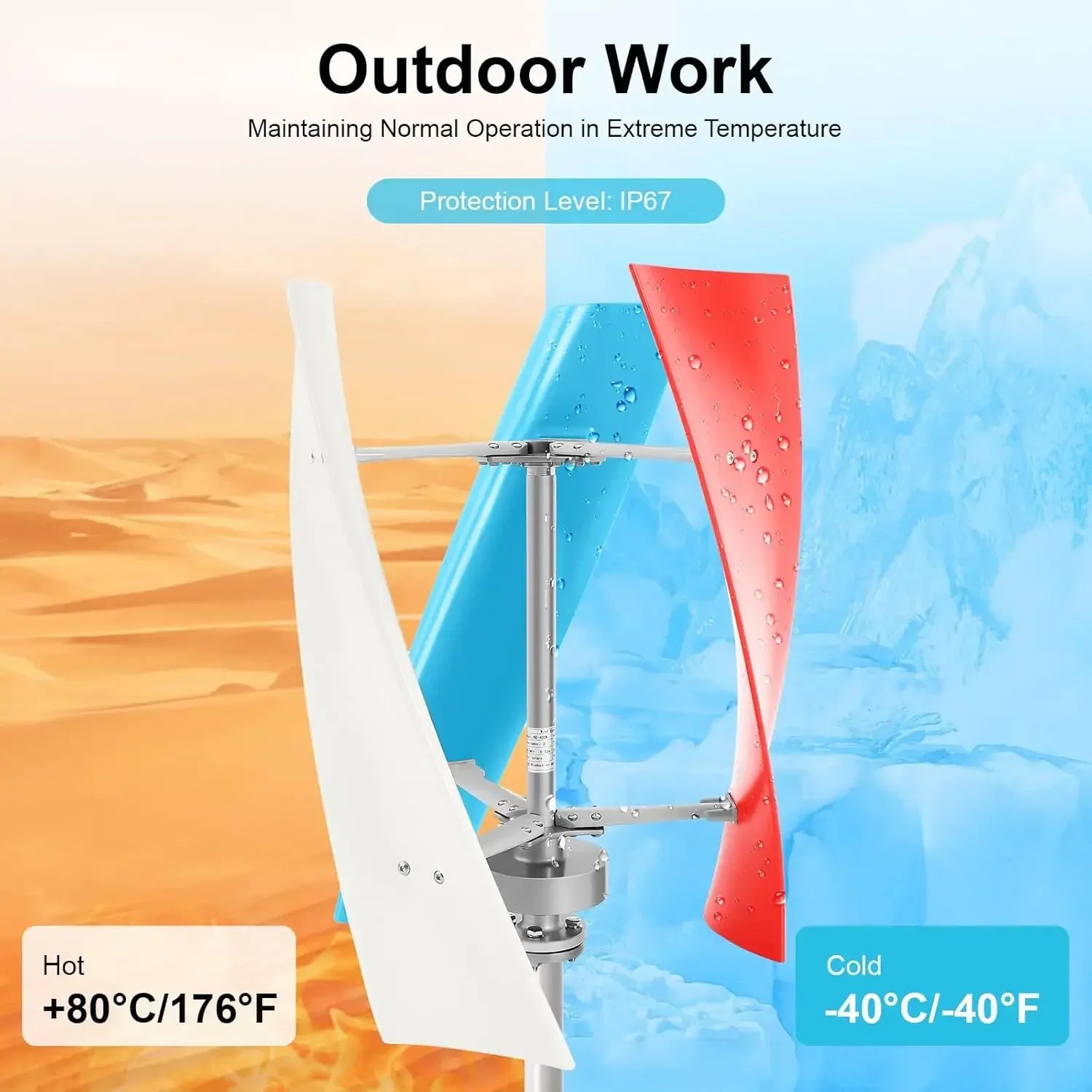

Generator Protection Grade: IP67

Work Environment Temperature: 25 to 45℃+

Product Assembly Weight: <10kg/22lbs

Over-speed Protection: Electromagnetic Brake

Blade Material: Nylon Fiber

Generator: Maglev Generator

Service Life: 10-15 Years

Installation Instructions: Not Included

Rated Voltage: 24V/12V

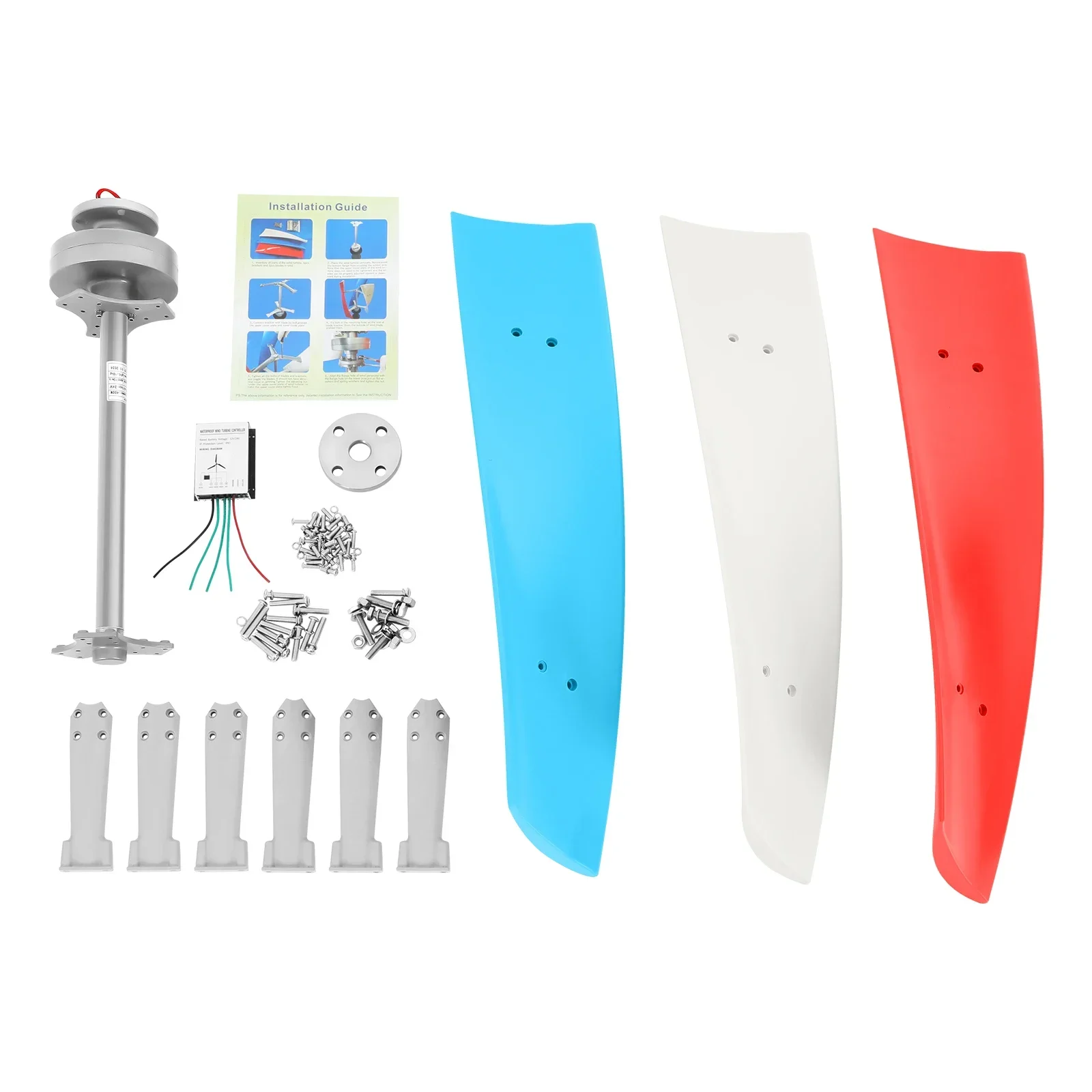

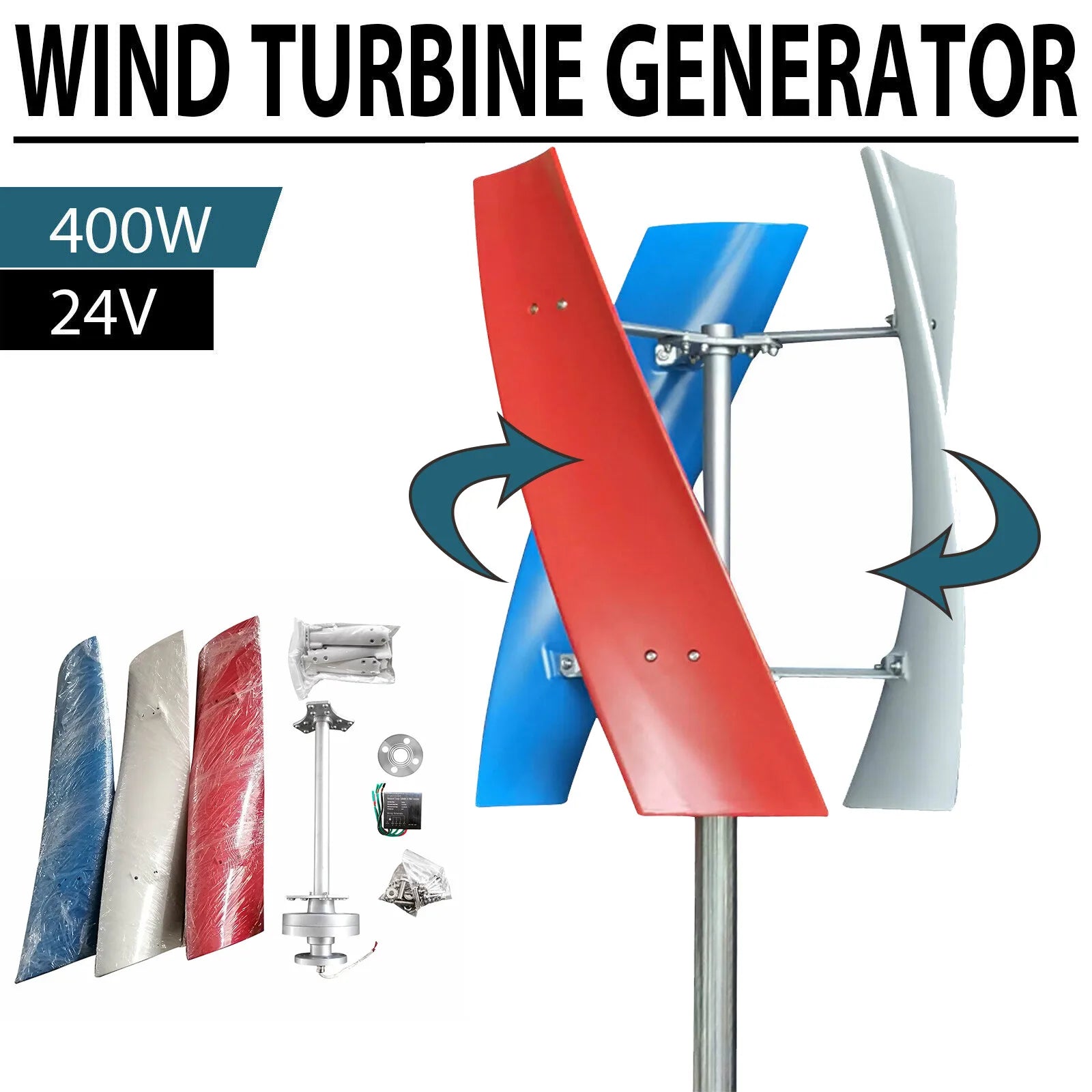

Package Included

1 x Wind Turbine

1 x Controller

3 x Blades (White, Red, Blue)

1 x Bag of Screws to Connect the Main Body

1 x Bag of Screws for Connecting the Bracket Blades

Other Accessory for Assembly

note：The wind speed needs to reach 18m/s for the machine to generate electricity properly.

note：The wind speed needs to reach 18m/s for the machine to generate electricity properly.

Notes

• There are two different kinds of screws. Please confirm the correct position of the screws before installation.

• The upper cover plate of the wind turbine does not need to be tightened, and the blades can be properly adjusted upward or downward during installation.

• When you place the wind turbine vertically, please prevent the bottom flange from crushing the output wire.

•

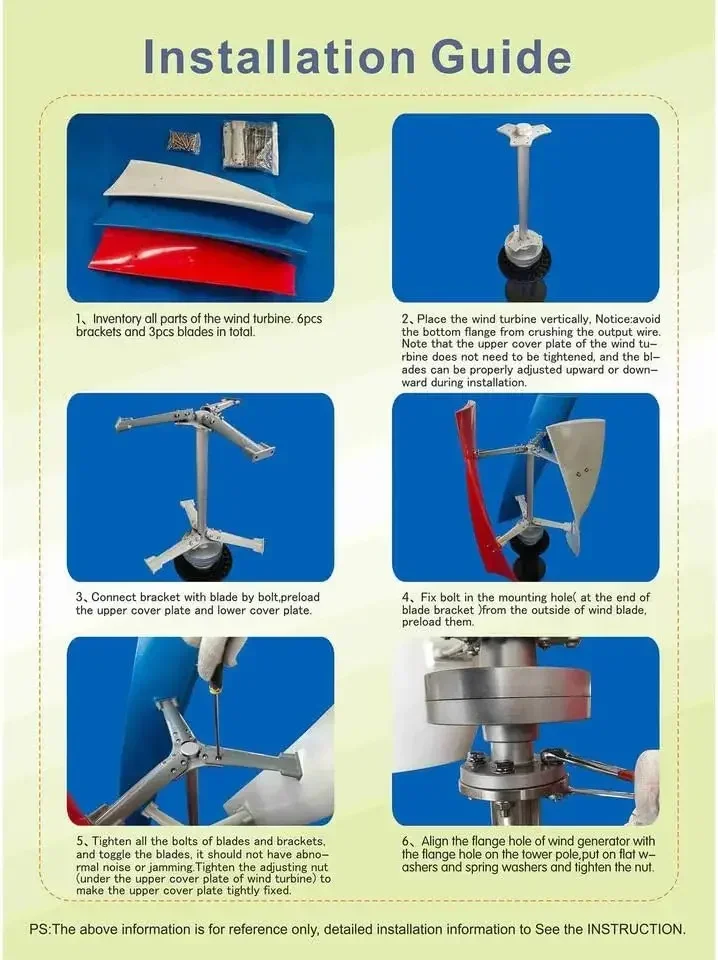

Installation

1. Check all the parts of the wind turbine, which includes 6 brackets and 3 blades in total.

2. Place the wind turbine vertically.

3. Connect brackets with blades by the bolt. Load the upper cover plate and lower cover plate.

4. Fix the bolt in the mounting hole (at the end of the bracket) from the outside of the wind blade.

5. Tighten all the bolts of blades and brackets, and toggle the blades. It should not have abnormal noise or jamming. Tighten the nut (under the upper cover plate of the wind turbine) to make the upper cover plate tightly fixed.

6. Align the flange hole of the wind turbine with the flange hole on the tower pole, put on flat washers and spring washers, and tighten the nut.

7. Professional installation is highly recommended if you have no previous installation experience.

8. You can watch the attached installation video as a reference.

9. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
