SPECIFICATION

Effect: MINI Rangefinder for Hunting

Magnification Maximum: 6X

Measurement Distance: 2000M/3000M

Measurement Range: 2000M/3000M

Measurement error: 1 meter/yard

Model Number: N4

Name: Mini Hunting Rangefinder

Operation System: Laser

Power: TYPE-C USB rechargeable

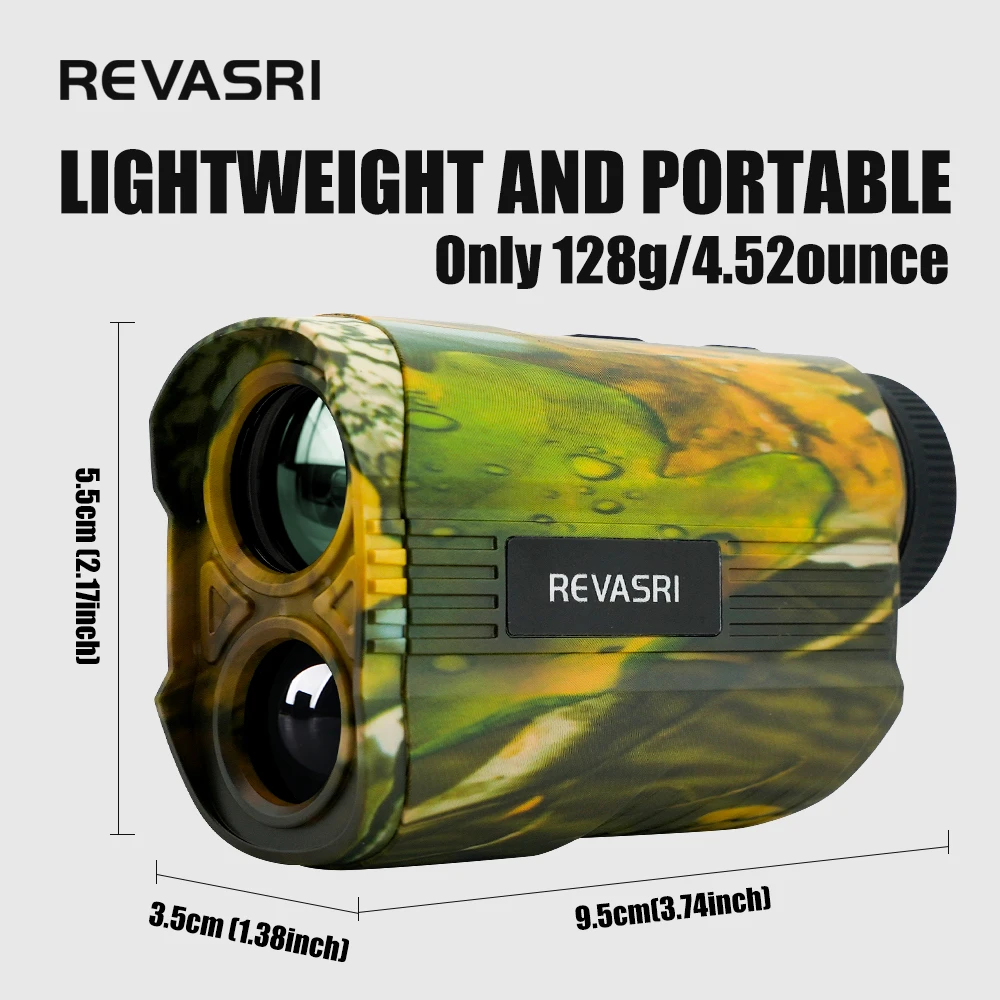

Size: 95*55*35mm/3.74*2.17*1.38inch

Usefulness: Hunting, Survey,Outdoor Wild Hunting

Working Temperature: -20~50℃

REVASRI Hunting Rangefinder 2000M/3000M, 6x Magnification, Type-C Charging, Distance/Speed Range Finder for Hunting Shooting

Precautions:

1. This rangefinder is designed for long-distance measurements, with a minimum measurement distance of 5 meters.

2. Glass can reflect the laser beam and affect measurement results. Do not measure through glass during use.

3. Rainy, foggy, dusty weather, and severe air pollution may affect laser radiation transmission and measurement results.

4. In low-light conditions at night, additional lighting is required to view the readings, as the eyepiece display is not illuminated.

5. Measurements cannot be taken in storage mode. Press the M/Mode button to switch to other measurement modes for normal operation. Press the power button to view the previous 10 sets of measurement data.

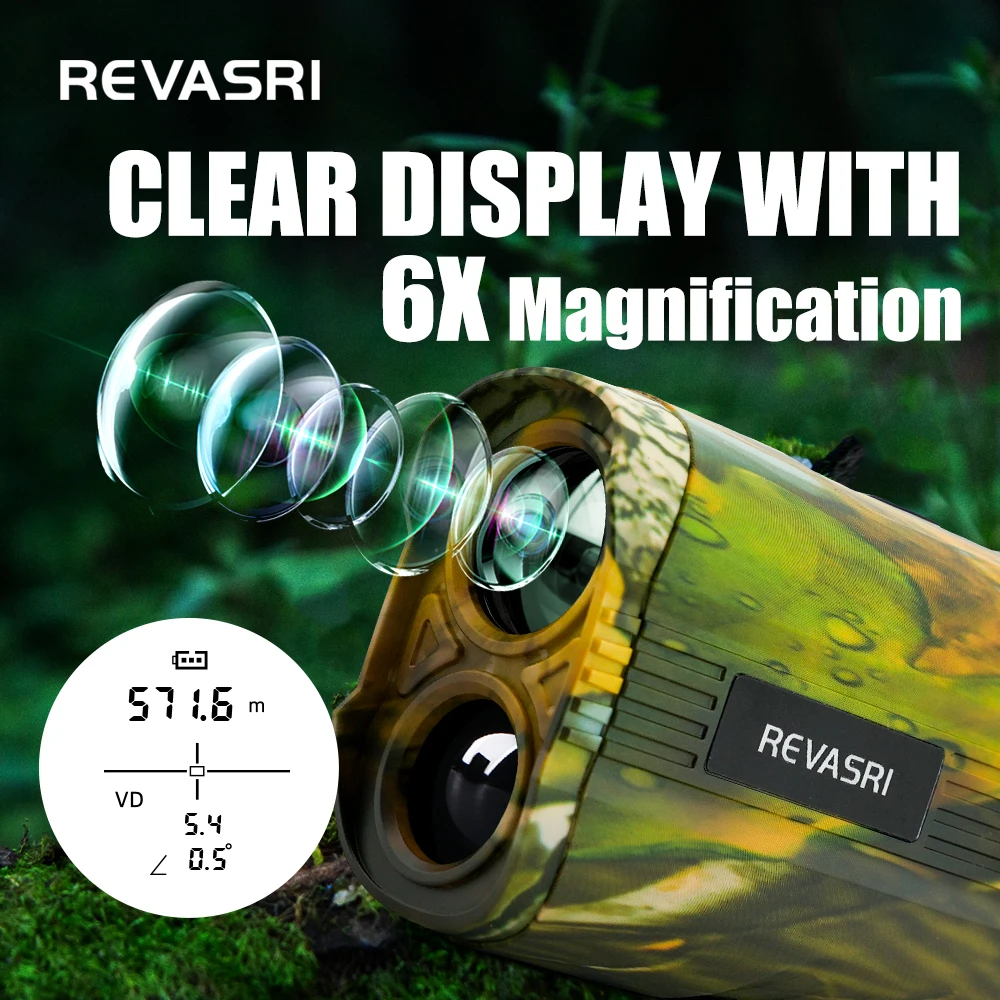

6. It supports 6x magnification, turn the eyepiece knob to achieve optimal clarity.

Please review these precautions for the rangefinder. We recommend retesting the device outdoors on a target exceeding 5 meters. If you have further questions, feel free to contact us again, and we will respond promptly.

Function:

1. This is a small size hunting rangefinder. Lightweight and Portable

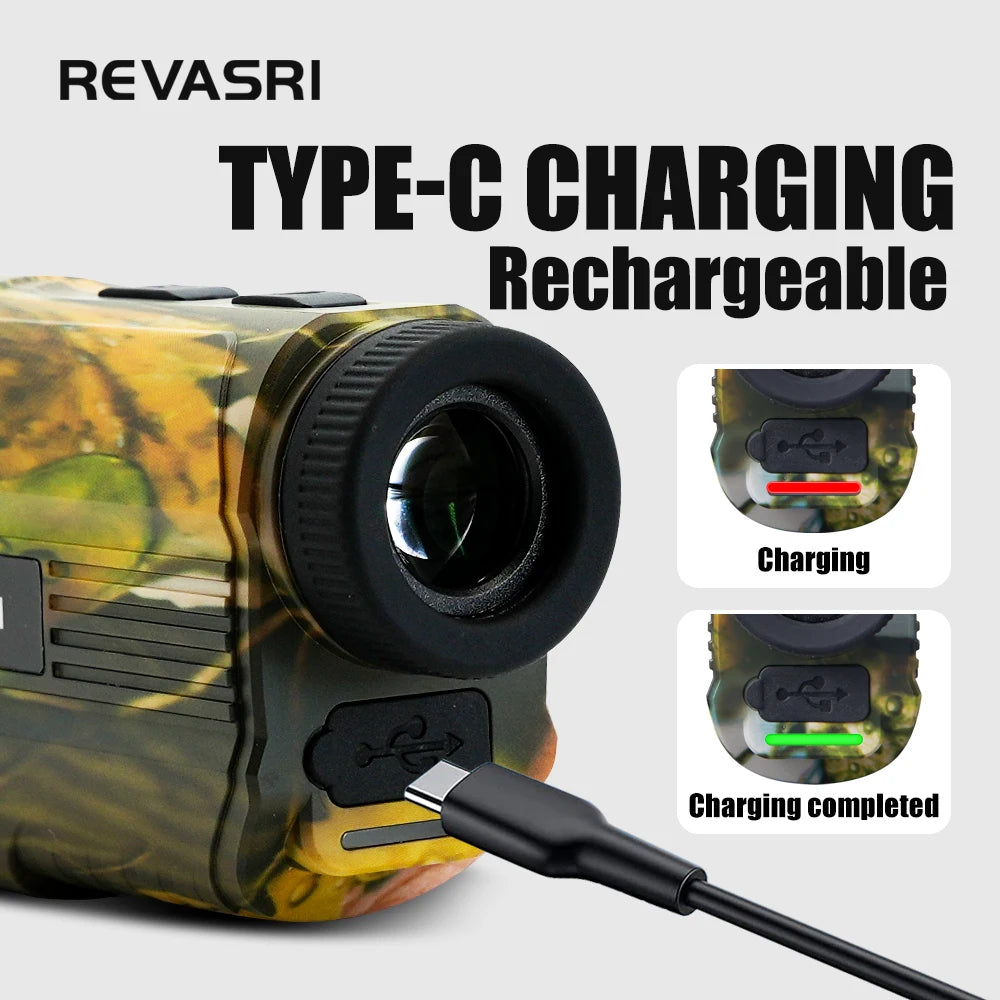

2.Power supply type: Type-C Rechargeable

3.Unit:M/Yard/F （Press and hold the M button and measurement button simultaneously for 3-5 seconds to switch units）

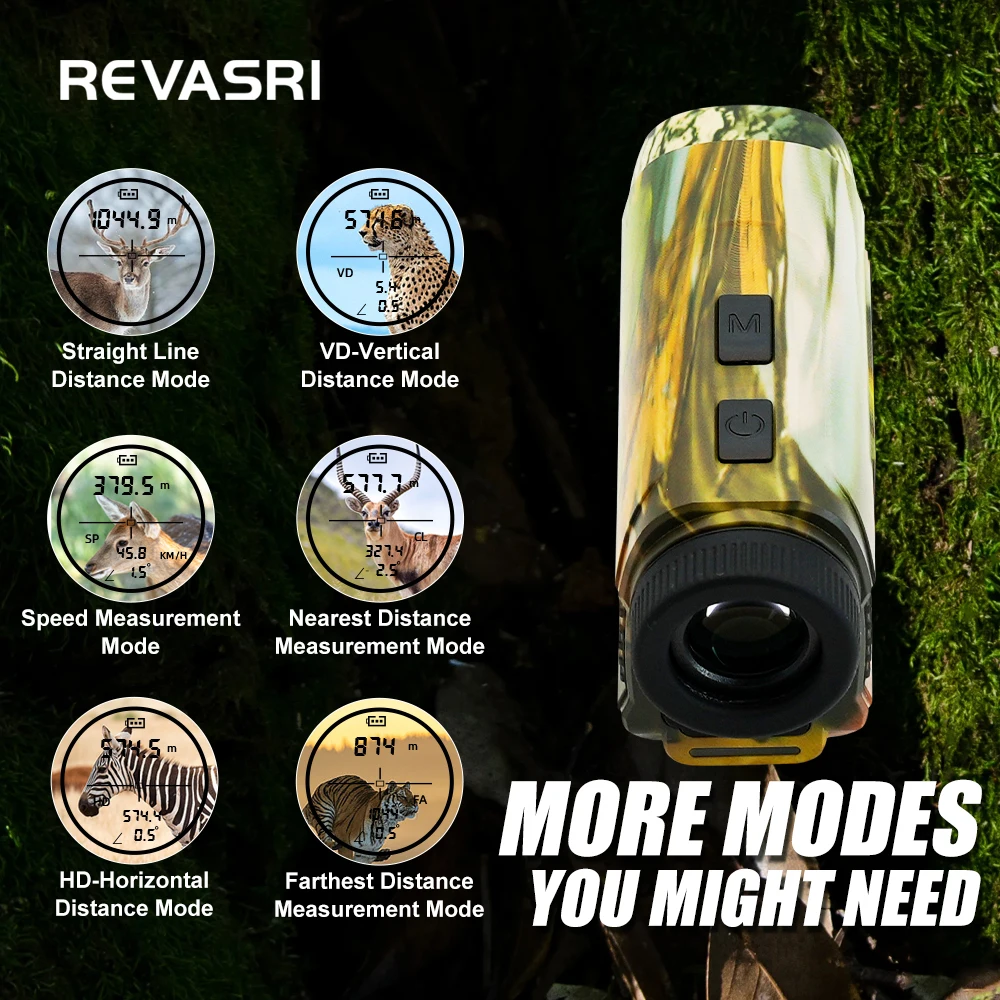

6 MODES YOU MIGHT NEED:

Mode 1, Straight Line Distance Mode

Mode 2,VD-Vertical Distance Mode

Mode 3,HD-Horizontal Distance Mode

Mode 4, Speed Measurement Mode

Mode 6,Farthest Distance Measurement Mode
